Aquatica - Derby Galleon - J1960

We have created the reference J1960 in our "Aquatica" range. This play equipment is accessible from 3 years. It can accommodate up to 85 users.

The size of the module is: 20.50 m length, 16.80 m width, 8.20 m. high. The free fall height (FFH) is 2.00 m.

60 play functions

Role play x1

Role play promotes the child's intellectual and social skills.

Sliding x3

Sliding is always exciting and fun. On a classic slide or a sliding pole, on your stomach, on your back, as you please.

Meeting x1

Playing together, children meet new faces, new behaviors, new personalities, and how to interact.

Resting x5

Resting allows the child to recover from their exertions, and also improve their concentration.

Handling x12

Handling is a great activity for developing motor skills and abilities in young children while having fun.

Thinking x10

Thinking helps children become more independent and gain self-confidence through increased understanding and self-awareness.

Tactile stimulation x10

Each touch-stimulating activity enables children to refine their manual dexterity skills, and the coordination of their gestures.

Climbing x4

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height and space.

Balancing x1

Balancing involves learning to manage empty space in activities at height, when hanging or on narrow surfaces.

Hiding x2

Feel the excitement of being hidden somewhere, and then the pleasure of finally being found.

Climbing x5

Climbing develops the child's motor and psychomotor skills as they balance and deliberate to progress in their movement.

Crawling x2

Crawling is a fun exercise that allows young children to become aware of their body in a small space.

Sound stimulation x1

Fun sound activities bring liveliness to play areas, and are often shared by several children!

Visual stimulation x3

It awakens curiosity and memorising, stimulating concentration to better assimilate details, or to succeed in the association of colors.

Specifications

Age range:	3+
Number of users:	85 users
FFH :	2.00 m
Size:	20.50 x 16.80 x 8.20 m

Equipment installation

Number of installers:	3
Concrete volume:	2.40 m3
Surface:	213.00 m2
Total weight:	4813.41 kg
Weight of the heaviest element:	52.94 kg

Environmental Indicators

Repairability

9.48 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

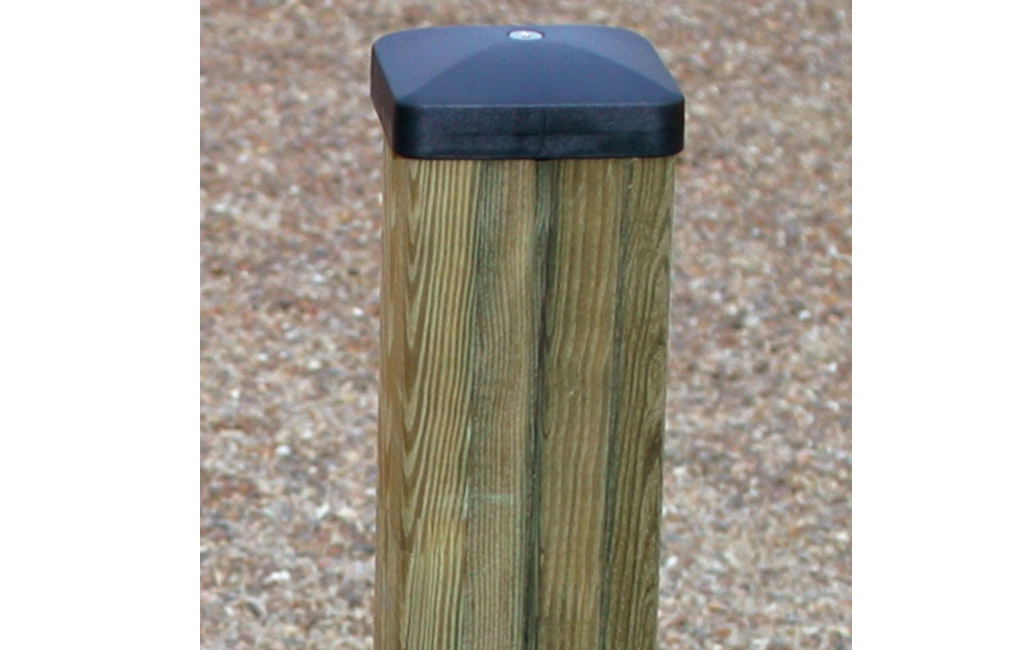

The vertical 68mm square post are made of laminated timber, which have not been treated with chrome or arsenic. Splinter-free, the laminate provides great strength and dimensional... stability. The posts are protected from wear and tear caused by fungi and insects. The posts are protected by injected polyamide caps. Read more

The 125mm diameter posts are made of painted galvanised steel, ensuring robustness and durability. The caps are made of injection moulded polyamide.

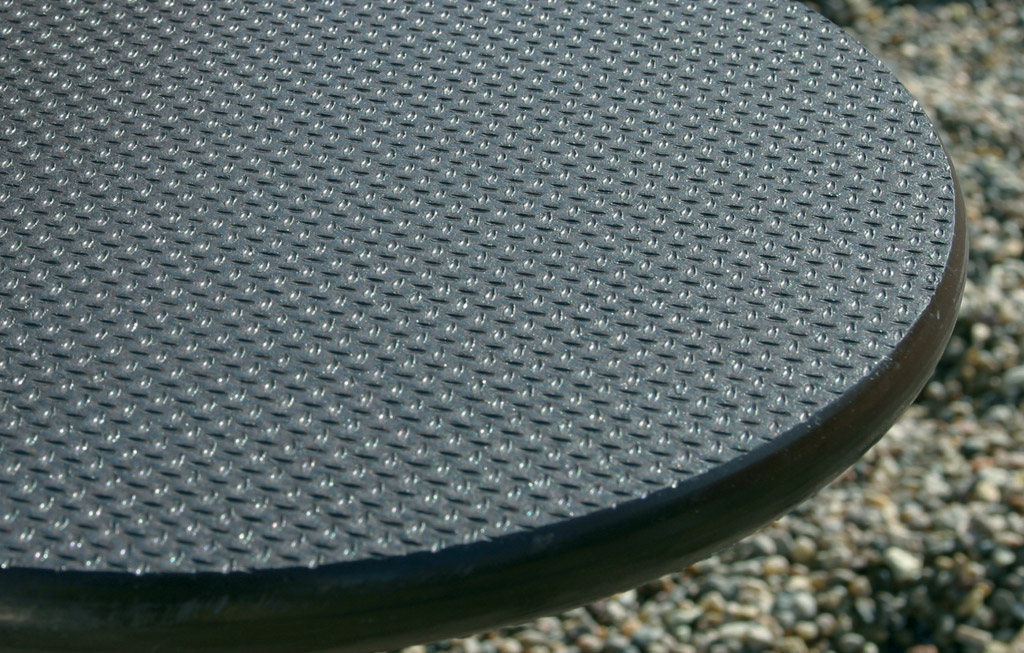

The platforms are 21mm plywood panels made up of layers of birch. The surface is coated with a film of non-slip phenolic resin.

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

The tubular slide is made of stainless steel.

The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.
