Proludic Australia
Multi Use Games Area
J22200®
We have created the reference J22200® in our "Multi-Use Games Areas" range. This activity equipment is accessible from 6 years. It can accommodate up to 15 users.
The size of the module is: 20.20 m length, 10.20 m width, 3.90 m. high.
| Age range: | 6+ |
| Number of users: | 15 users |
| Size: | 20.20 x 10.20 x 3.90 m |
| Number of installers: | 3 |
| Installation time: | 24:00:00 |
| Concrete volume: | 3.00 m3 |
| Total weight: | 1219.41 kg |
| Weight of the heaviest element: | 27.36 kg |
Repairability
8.65 /10

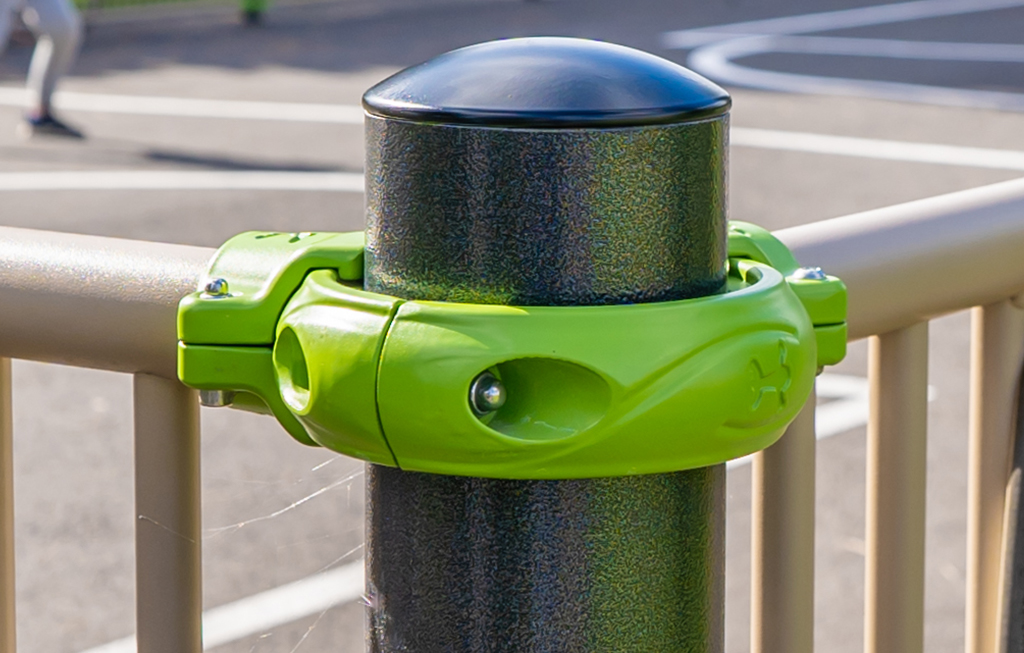

The 102mm diameter posts are made of painted galvanised steel. The grained finish has a slightly undulating surface for increased scratch resistance. The caps are made of... painted aluminium. The fixing collars are made of painted aluminium. Read more

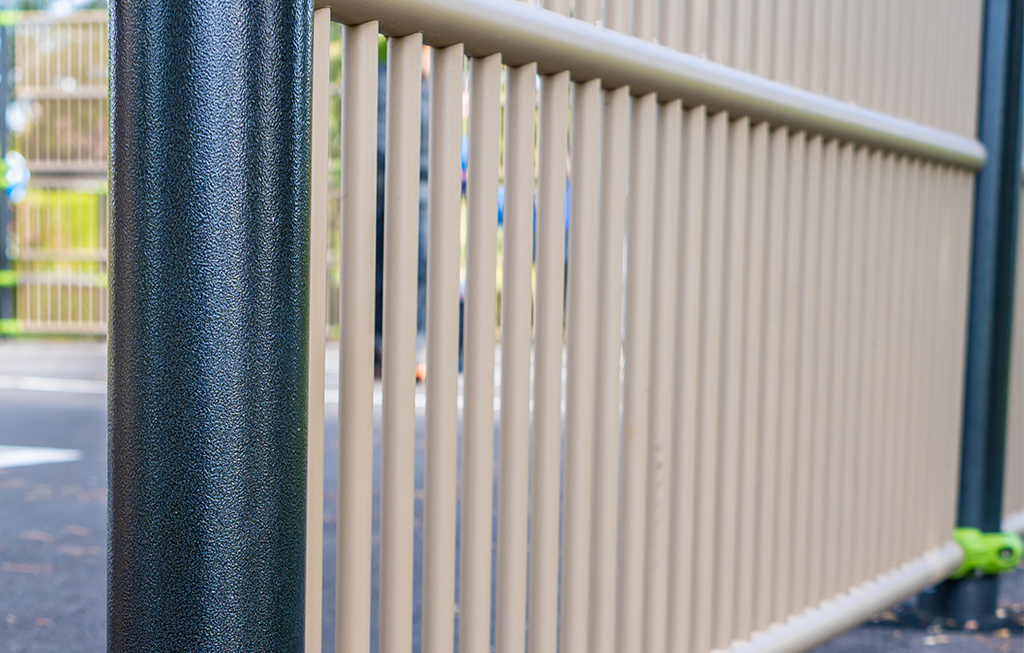

The mesh fencing is made of painted aluminum. The goal area mesh fencing is made of painted galvanised steel.

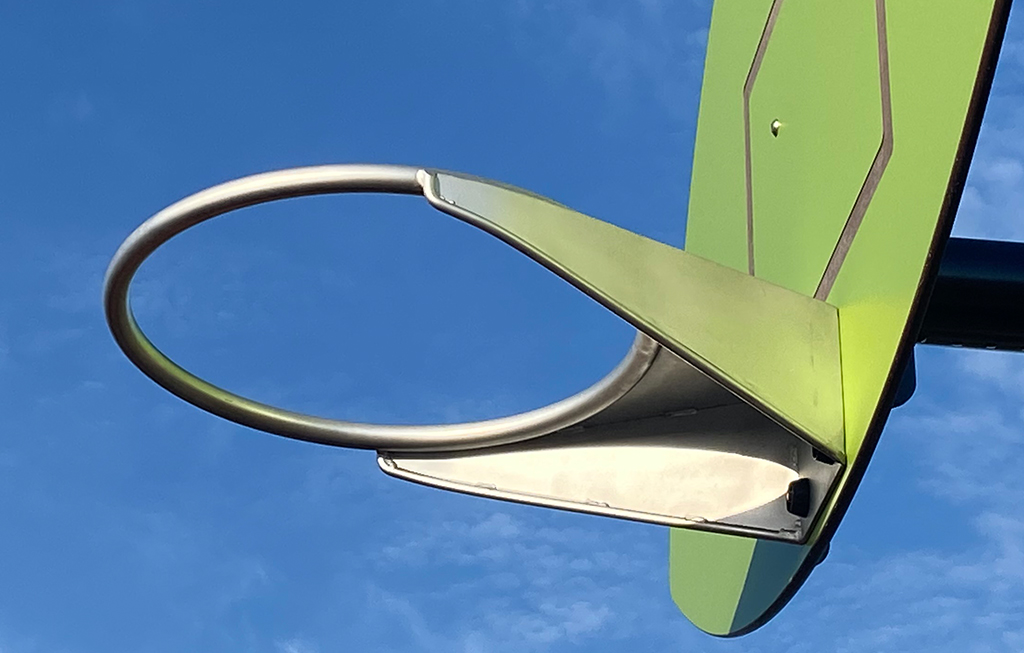

The basketball ring is made of galvanised steel.
The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.
The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
