Ixo - J2540-M

We have created the reference J2540-M in our "Ixo" range. This play equipment is accessible from 6 years. It can accommodate up to 21 users.

The size of the module is: 7.97 m length, 2.60 m width, 3.30 m. high. The free fall height (FFH) is 2.40 m.

9 play functions

Sliding x2

Sliding is always exciting and fun. On a classic slide or a sliding pole, on your stomach, on your back, as you please.

Meeting x1

Playing together, children meet new faces, new behaviors, new personalities, and how to interact.

Hanging x1

This fun activity allows children to explore new ways of playing, of managing space, height and empty space below.

Balancing x1

Balancing involves learning to manage empty space in activities at height, when hanging or on narrow surfaces.

Climbing x2

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height and space.

Traversing x1

Successfully traversing promotes self-confidence and motivates the child to undertake more complex movements.

Resting x1

Resting allows the child to recover from their exertions, and also improve their concentration.

Specifications

Age range:	6+
Number of users:	21 users
FFH :	2.40 m
Size:	7.97 x 2.60 x 3.30 m

Equipment installation

Number of installers:	2
Installation time:	17:00:00
Concrete volume:	0.70 m3
Surface:	61.00 m2
Total weight:	264.03 kg
Weight of the heaviest element:	54.17 kg

Environmental Indicators

Repairability

9.48 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The 125mm diameter posts are made of painted galvanised steel. The two-tone grey grained finish has a slightly undulating surface for increased scratch resistance. The caps... are made of injection moulded polyamide. Read more

Injection moulded polyamide fixings connect the posts with the platforms and the various play feautures.

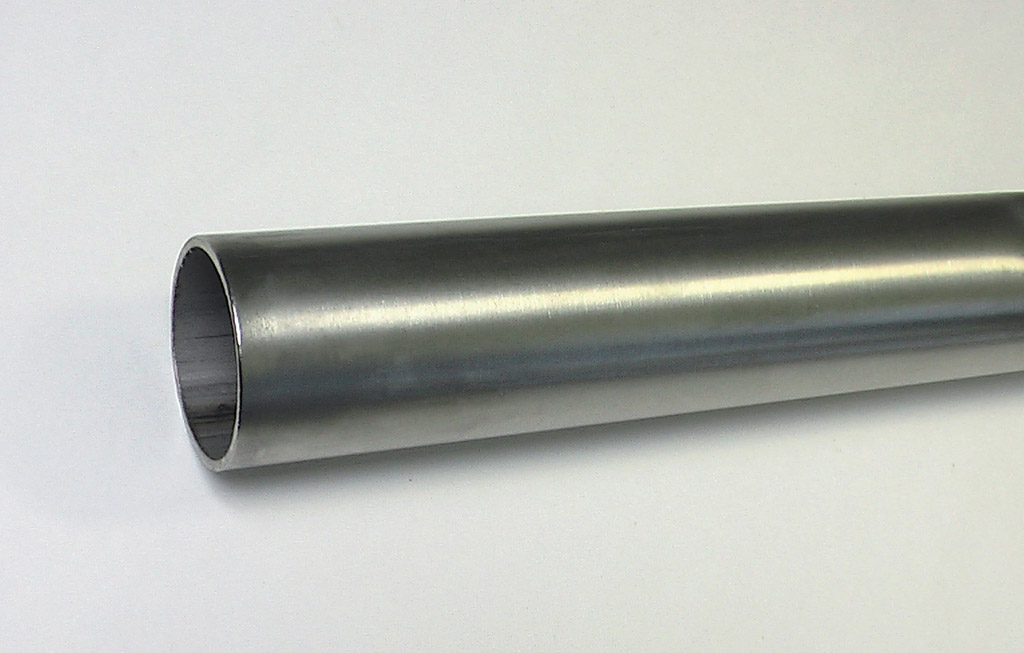

The tubes are made of stainless steel, guaranteeing lasting durability and reliability of the equipment.

Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipment both strong and vandal resistant. Read more

The platforms are made from a 12.5mm thick, textured, non-slip compact material (HPL). Further reinforcement is provided by lacquered galvanised steel supports,... located on the underside of the platforms. Read more

The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.
