Ixo - J2579-M

We have created the reference J2579-M in our "Ixo" range. This play equipment is accessible from 6 years. It can accommodate up to 24 users.

The size of the module is: 9.98 m length, 4.26 m width, 3.03 m. high. The free fall height (FFH) is 1.95 m.

12 play functions

Sliding x1

Sliding is always exciting and fun. On a classic slide or a sliding pole, on your stomach, on your back, as you please.

Meeting x2

Playing together, children meet new faces, new behaviors, new personalities, and how to interact.

Resting x1

Resting allows the child to recover from their exertions, and also improve their concentration.

Crawling x1

Crawling is a fun exercise that allows young children to become aware of their body in a small space.

Balancing x3

Balancing involves learning to manage empty space in activities at height, when hanging or on narrow surfaces.

Rotating x1

Rotating allows the child to experience thrills and speed, to feel that "head spinning" effect, or their feet taking off.

Climbing x2

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height and space.

Traversing x1

Successfully traversing promotes self-confidence and motivates the child to undertake more complex movements.

Specifications

Age range:	6+
Number of users:	24 users
FFH :	1.95 m
Size:	9.98 x 4.26 x 3.03 m

Equipment installation

Number of installers:	2
Installation time:	07:00:00
Concrete volume:	1.00 m3
Surface:	74.00 m2
Total weight:	456.09 kg
Weight of the heaviest element:	24.00 kg

Environmental Indicators

Repairability

9.48 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The 125mm diameter posts are made of painted galvanised steel. The two-tone grey grained finish has a slightly undulating surface for increased scratch resistance. The caps... are made of injection moulded polyamide. Read more

Injection moulded polyamide fixings connect the posts with the platforms and the various play feautures.

The platforms are made from a 12.5mm thick, textured, non-slip compact material (HPL). Further reinforcement is provided by lacquered galvanised steel supports,... located on the underside of the platforms. Read more

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

The rubber ring is a monobloc element made of polyethylene with an outside diameter of 70cm and inside diameter of 45cm.

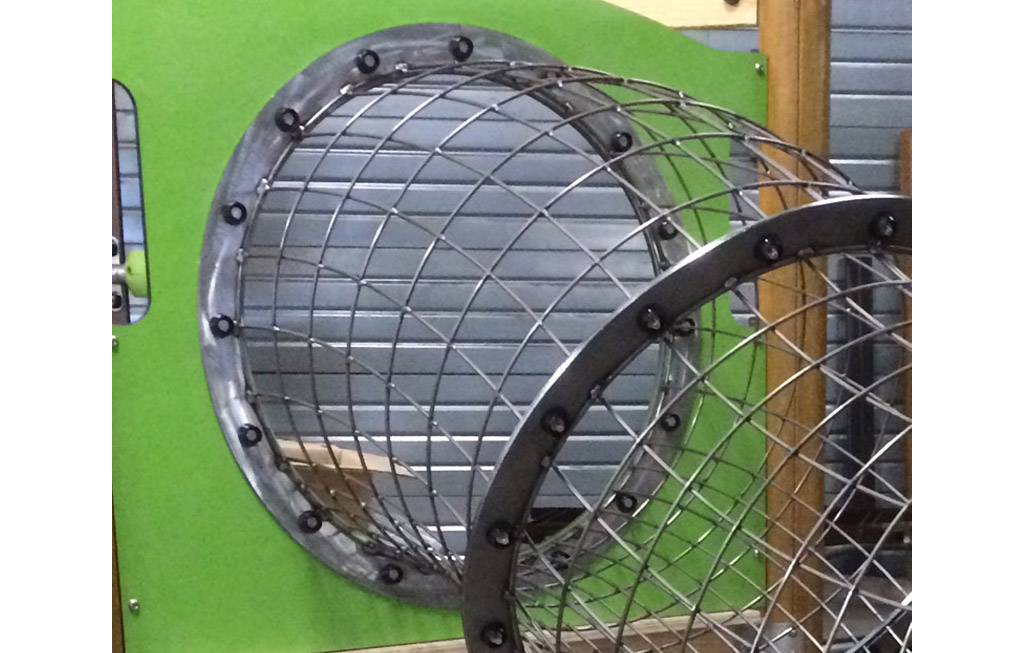

The tunnel (L: 4.05m - Ø 0.78m) is made of steel mesh netting, Ø 6mm, with Rilsan plastic covering.

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.
