Cableways - Aeroskate - J2581-M

We have created the reference J2581-M in our "Cableways" range. This play equipment is accessible from 6 years. It can accommodate up to 1 user.

The size of the module is: 7.80 m length, 3.70 m width, 3.00 m. high. The free fall height (FFH) is 1.50 m.

5 sports activities

Sliding x1

Sliding is always exciting and fun. On a classic slide or a sliding pole, on your stomach, on your back, as you please.

Meeting x1

Playing together, children meet new faces, new behaviors, new personalities, and how to interact.

Hanging x1

This fun activity allows children to explore new ways of playing, of managing space, height and empty space below.

Swinging x1

To create movement, children must be able to coordinate their arms, legs and vision in a coordinated fashion.

Balancing x1

Balancing involves learning to manage empty space in activities at height, when hanging or on narrow surfaces.

4 sports activities

Sensations

Progressive design

Diversity

Challenge

Specifications

Age range:	6+
Number of users:	1 user
FFH :	1.50 m
Size:	7.80 x 3.70 x 3.00 m

Equipment installation

Number of installers:	2
Installation time:	08:00:00
Concrete volume:	0.23 m3
Surface:	23.00 m2
Total weight:	111.01 kg
Weight of the heaviest element:	48.45 kg

Environmental Indicators

Repairability

8.65 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The 125mm diameter posts are made of painted galvanised steel. The two-tone grey grained finish has a slightly undulating surface for increased scratch resistance. The caps... are made of injection moulded polyamide. Read more

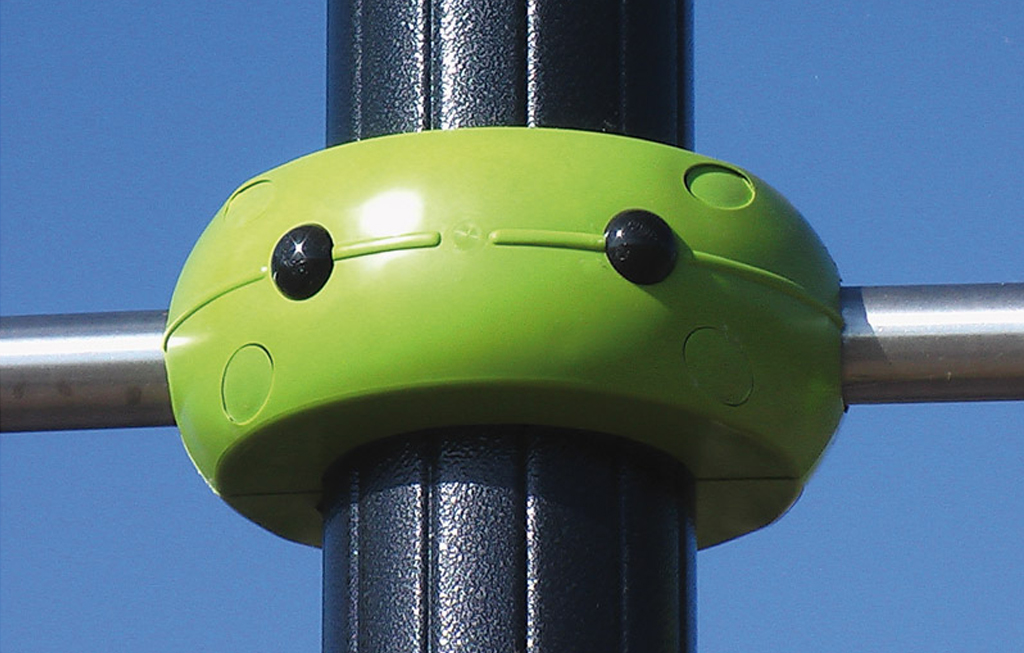

The fixing elements are made of injection moulded polyamide.

The tubes are made of stainless steel, guaranteeing lasting durability and reliability of the equipment.

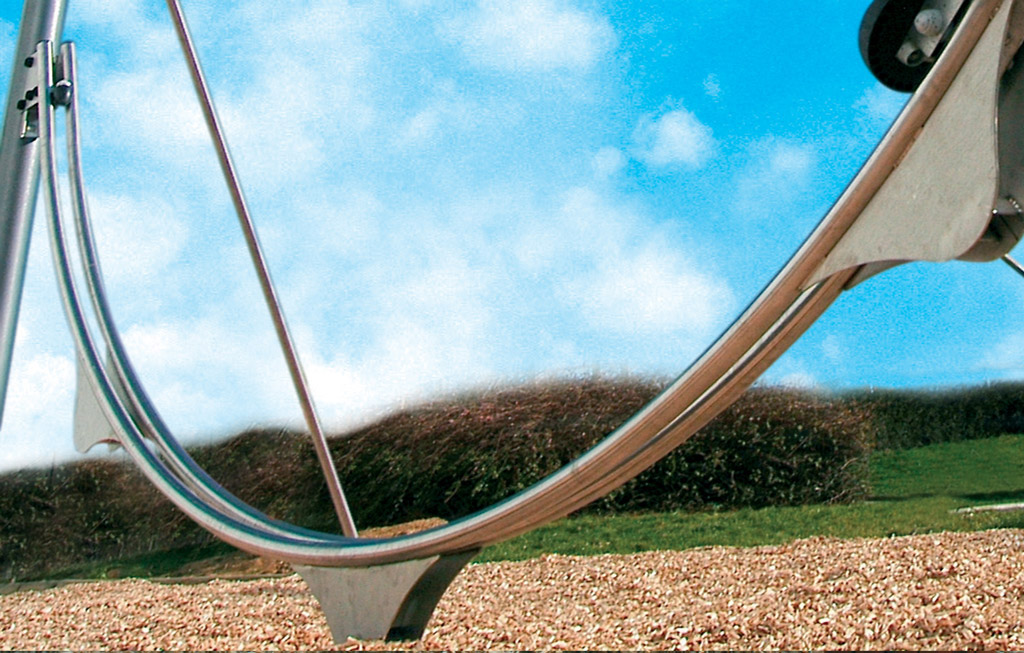

The one-piece rail is made of stainless steel. The limit stops located at the ends of the rail set the maximum range of the movement.

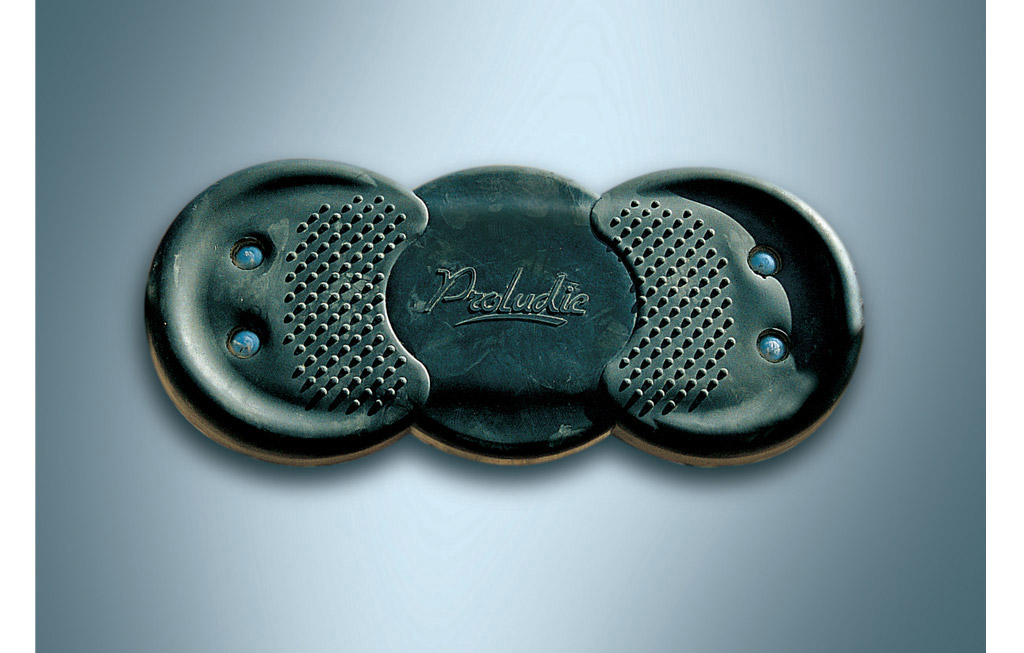

The skateboard is made with a non-slip rubber overmould. The stainless steel trolley is fitted with a sealed ball bearing system that ensures fluid, regular... movement. Read more
