Rotating equipment - Gyrosat - J2594-M

We have created the reference J2594-M in our "Rotating equipment" range. This play equipment is accessible from 7 years. It can accommodate up to 2 users.

The size of the module is: 4.55 m length, 2.70 m width, 3.00 m. high. The free fall height (FFH) is 0.70 m.

Other finishes available

J2594

4 play functions

Rotating x1

Rotating allows the child to experience thrills and speed, to feel that "head spinning" effect, or their feet taking off.

Meeting x1

Playing together, children meet new faces, new behaviors, new personalities, and how to interact.

Hanging x1

This fun activity allows children to explore new ways of playing, of managing space, height and empty space below.

Balancing x1

Balancing involves learning to manage empty space in activities at height, when hanging or on narrow surfaces.

Specifications

Age range:	7+
Number of users:	2 users
FFH :	0.70 m
Size:	4.55 x 2.70 x 3.00 m

Equipment installation

Number of installers:	2
Installation time:	05:15:00
Concrete volume:	0.32 m3
Surface:	26.00 m2
Total weight:	113.60 kg
Weight of the heaviest element:	11.40 kg

Environmental Indicators

Repairability

9.06 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

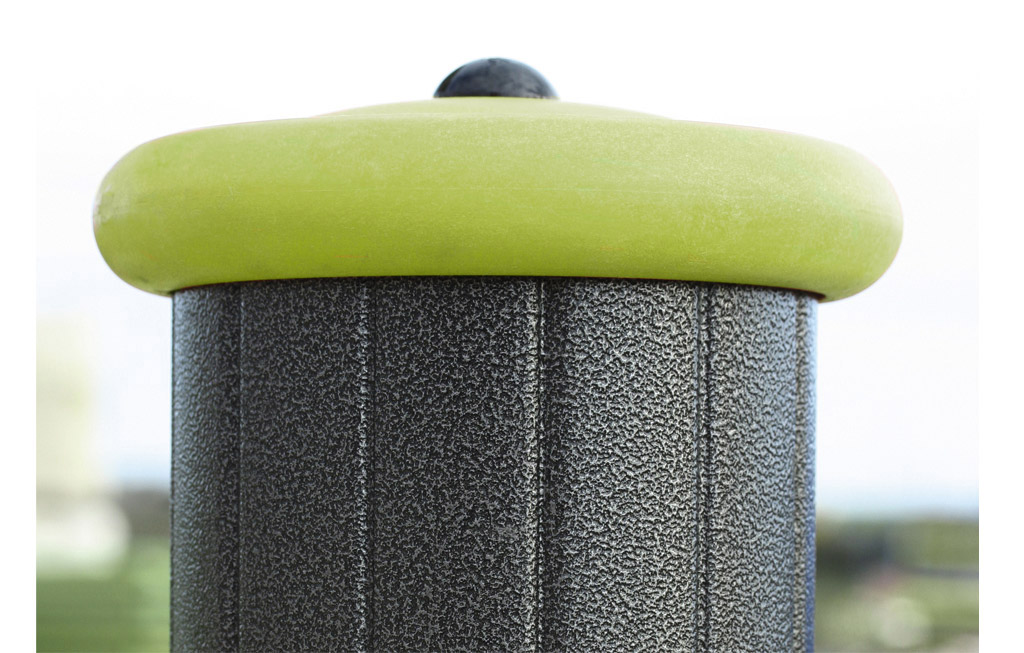

The 125mm diameter post is made of painted galvanised steel. The two-tone grey grained finish has a slightly undulating surface for increased scratch resistance. The cap is... made of injection moulded polyamide. Read more

The tubes are made of stainless steel, guaranteeing lasting durability and reliability of the equipment.

Injection moulded polyamide fixings connect the posts with the platforms and the various play feautures.

Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipment both strong and vandal resistant. Read more

The seat is made of shock absorbing moulded honeycomb rubber.

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.
