Aquatica - Bridge - J2740

We have created the reference J2740 in our "Aquatica" range. This play equipment is accessible from 4 years. It can accommodate up to 10 users.

The size of the module is: 7.40 m length, 0.69 m width, 2.62 m. high. The free fall height (FFH) is 1.20 m.

8 play functions

Role play x2

Role play promotes the child's intellectual and social skills.

Meeting x2

Playing together, children meet new faces, new behaviors, new personalities, and how to interact.

Balancing x1

Balancing involves learning to manage empty space in activities at height, when hanging or on narrow surfaces.

Climbing x2

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height and space.

Traversing x1

Successfully traversing promotes self-confidence and motivates the child to undertake more complex movements.

Specifications

Age range:	4+
Number of users:	10 users
FFH :	1.20 m
Size:	7.40 x 0.69 x 2.62 m

Equipment installation

Number of installers:	2
Installation time:	06:30:00
Concrete volume:	0.50 m3
Surface:	37.00 m2
Total weight:	245.46 kg
Weight of the heaviest element:	67.22 kg

Environmental Indicators

Repairability

9.48 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The vertical 95mm square post are made of laminated timber, which have not been treated with chrome or arsenic. Splinter-free, the laminate provides great strength and dimensional... stability. The posts are protected from wear and tear caused by fungi and insects. The posts are protected by injected polyamide caps. Read more

The platforms are made from a 12.5mm thick textured and non-slip compact material (HPL).

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipment both strong and vandal resistant. Read more

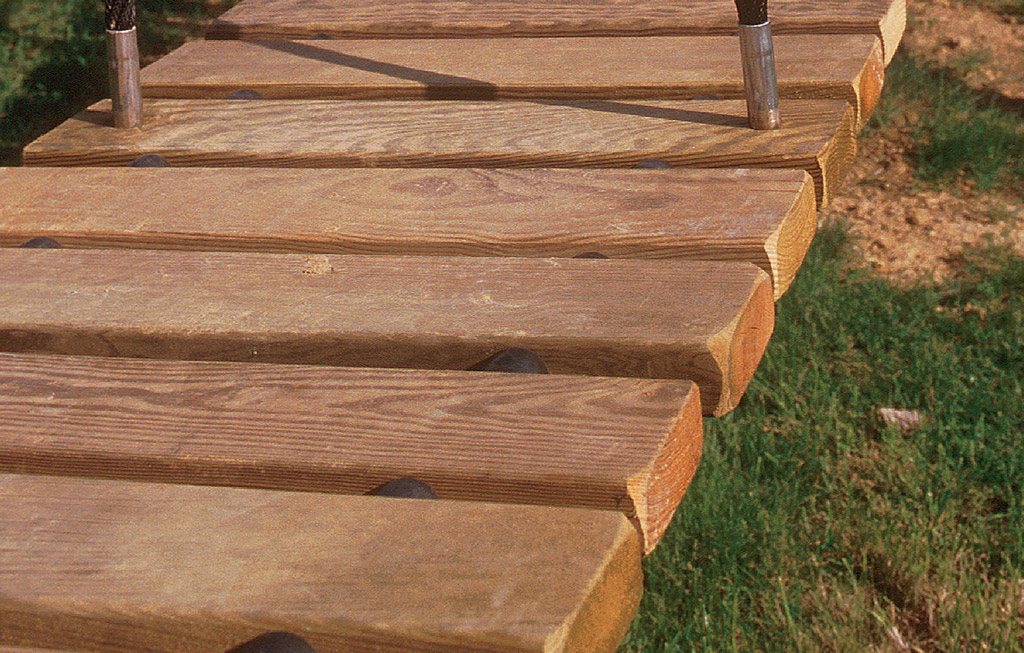

The gangway floor is made of solid wood planks, with rubber elements between the planks to avoid all risk of catching a finger.

The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.
