Furniture (seats, waste bins, shelters) - Meeting Point 1 - J2840

We have created the reference J2840 in our "Furniture (seats, waste bins, shelters)" range. It can accommodate up to 2 users.

The size of the module is: 2.24 m length, 1.40 m width, 2.30 m. high.

3 play functions

Meeting x1

Playing together, children meet new faces, new behaviors, new personalities, and how to interact.

Resting x1

Resting allows the child to recover from their exertions, and also improve their concentration.

Sheltering x1

Finding a small refuge to shelter in ensures children have a space of their own.

Specifications

Age range:
Number of users:	2 users
Size:	2.24 x 1.40 x 2.30 m

Equipment installation

Number of installers:	2
Installation time:	04:00:00
Concrete volume:	0.40 m3
Surface:	1.77 m2
Total weight:	129.23 kg
Weight of the heaviest element:	22.17 kg

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

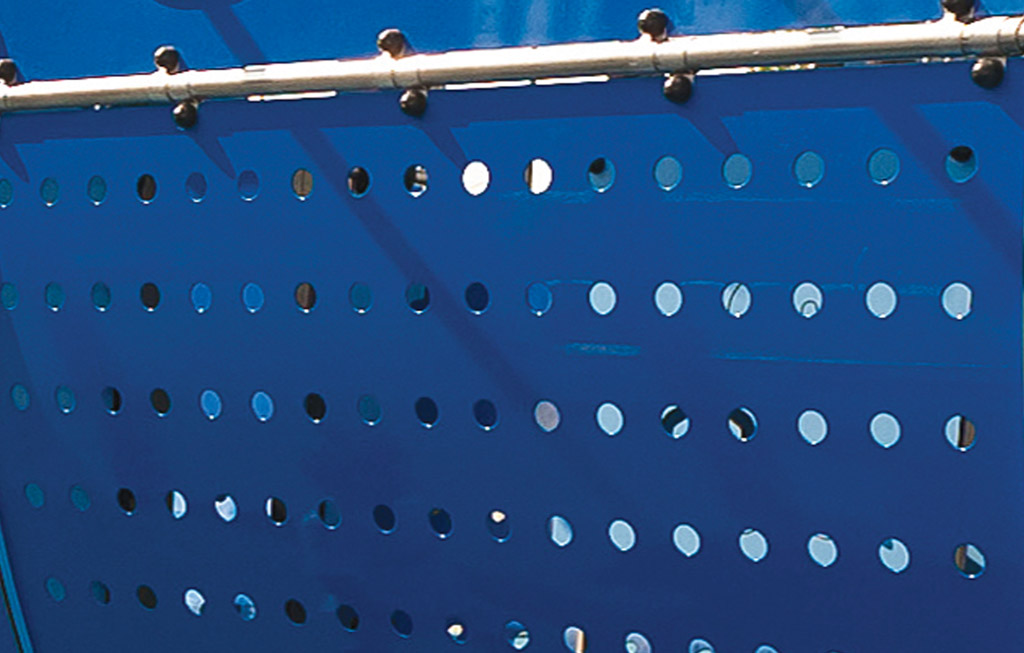

The wall panel is made of aluminium sheet 3mm thick. The surface is covered with two layers of polyester epoxy coating.

The 125mm diameter posts are made of painted galvanised steel. The grained finish has a slightly undulating surface for increased scratch resistance.

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipment both strong and vandal resistant. Read more
