Proludic Australia
Pixel Panel
J3426®
We have created the reference J3426® in our "Play panels, Audio & Musical play" range. This play equipment is accessible from 1 year. It can accommodate up to 1 user.
The size of the module is: 1.14 m length, 0.26 m width, 1.40 m. high. The free fall height (FFH) is 0.60 m.
| Age range: | 1+ |
| Number of users: | 1 user |
| FFH : | 0.60 m |
| Size: | 1.14 x 0.26 x 1.40 m |
| Number of installers: | 2 |
| Installation time: | 01:00:00 |
| Concrete volume: | 0.07 m3 |
| Surface: | 11.50 m2 |
| Total weight: | 68.03 kg |
| Weight of the heaviest element: | 23.10 kg |
Repairability
9.46 /10
The posts with average diameter 120 to 140mm are made from sap free robinia. The robinia is sanded and has had its bark removed. Robinia is naturally rot proof and does not require any additional... chemical protection; it is equally extremely resistant to attacks from external sources (insects, fungi, climatic variations), guaranteeing the long term durability of the playground equipment. Read more

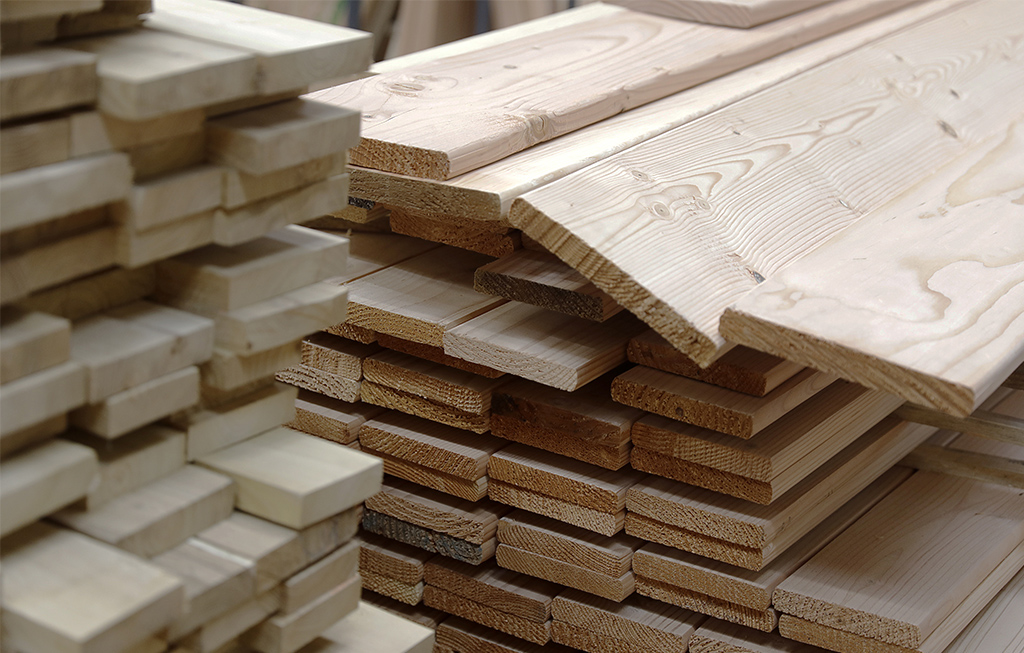

The boards are made from sap free robinia (plank sizes: 22 and 27mm). The robinia is sanded and has had its bark removed. Robinia is naturally rot proof and does... not require any additional chemical protection; it is equally extremely resistant to attacks from external sources (insects, fungi, climatic variations), guaranteeing the long term durability of the playground equipment. Read more
The abacus spheres are made of polycarbonate sheets.

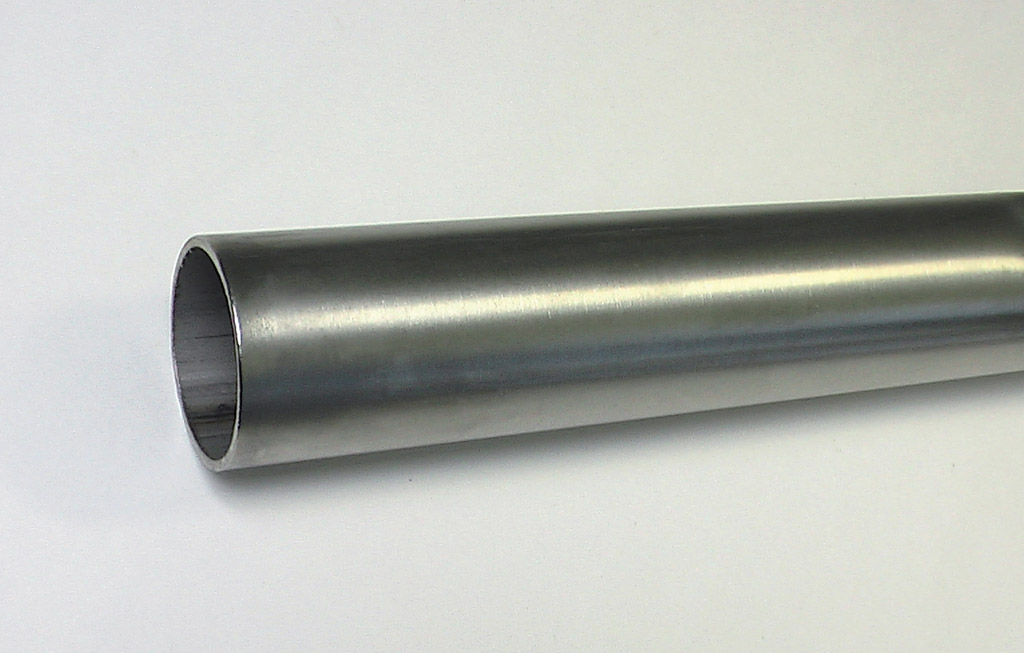

The tubes are made of 21mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.
The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
