In brief

Sports Equation

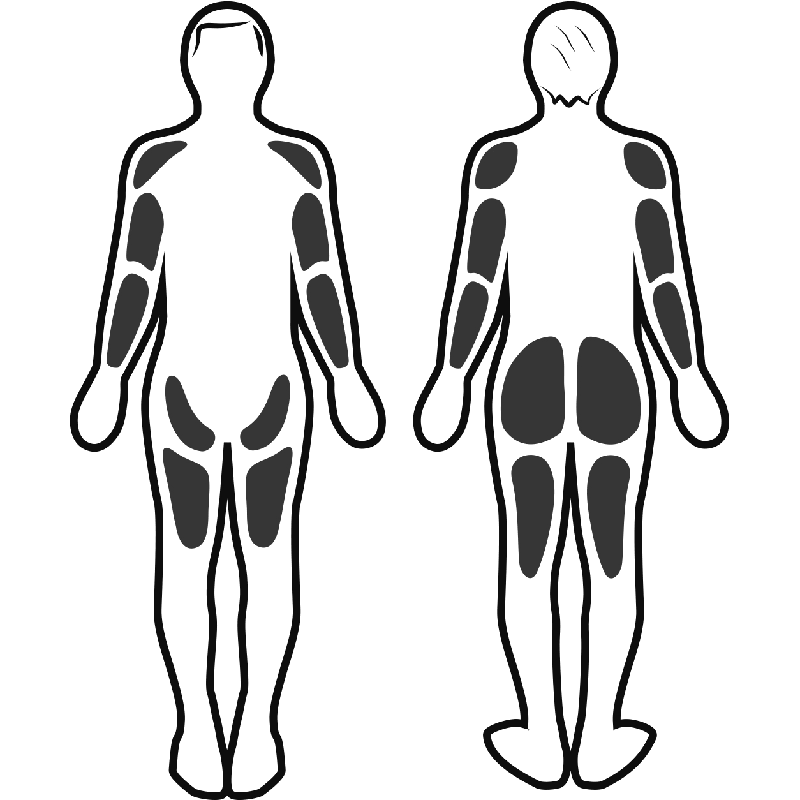

Muscle stimulation

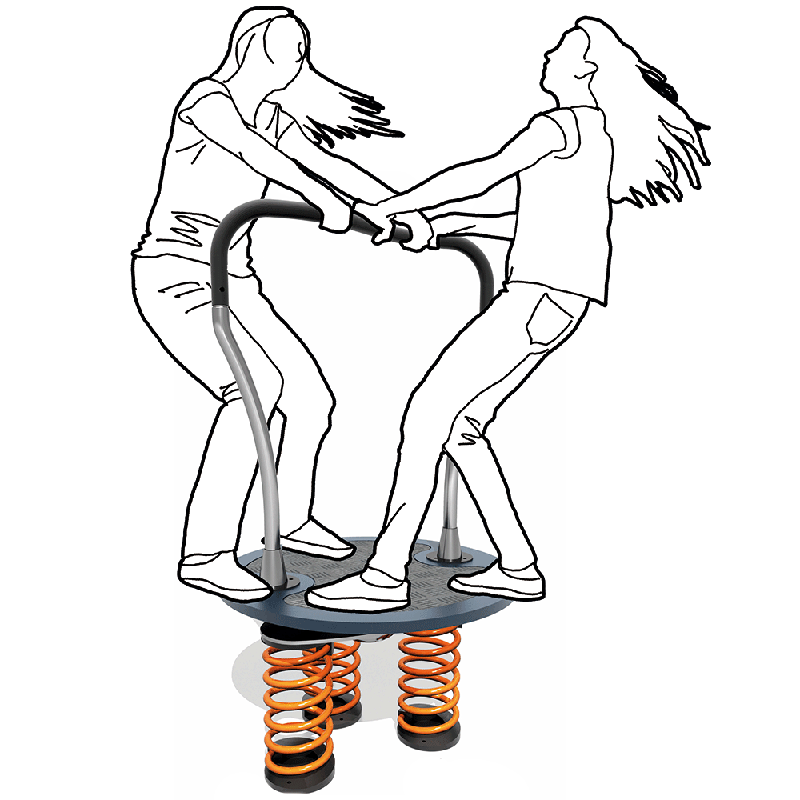

Movement

Dynamic Structures - Rodeoboard - J3501

We have created the reference J3501 in our "Dynamic Structures" range. This play equipment is accessible from 8 years. It can accommodate up to 4 users.

The size of the module is: 0.84 m length, 0.84 m width, 1.50 m. high. The free fall height (FFH) is 0.55 m.

4 sports activities

Balancing x1

Balancing involves learning to manage empty space in activities at height, when hanging or on narrow surfaces.

Meeting x1

Playing together, children meet new faces, new behaviors, new personalities, and how to interact.

Swinging x1

To create movement, children must be able to coordinate their arms, legs and vision in a coordinated fashion.

Rotating x1

Rotating allows the child to experience thrills and speed, to feel that "head spinning" effect, or their feet taking off.

4 sports activities

Sensations

Sharing

Diversity

Challenge

Specifications

Age range:	8+
Number of users:	4 users
FFH :	0.55 m
Size:	0.84 x 0.84 x 1.50 m

Equipment installation

Number of installers:	2
Installation time:	01:00:00
Surface:	23.00 m2
Total weight:	114.64 kg
Weight of the heaviest element:	105.95 kg

Environmental Indicators

Repairability

8.65 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Video - Dynamic Structures - Rodeoboard - J3501

Materials

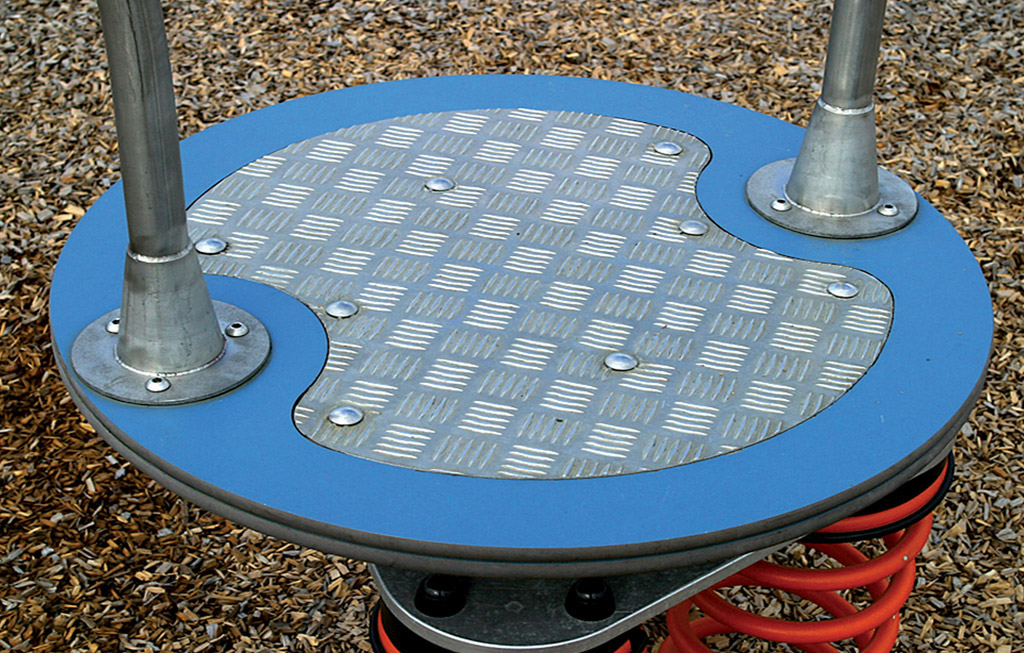

The rotating platform is made up of 2 HPL discs that give the equipment an extremely solid base. A non-slip channelled aluminium surface provides a good hold during... rotation. Read more

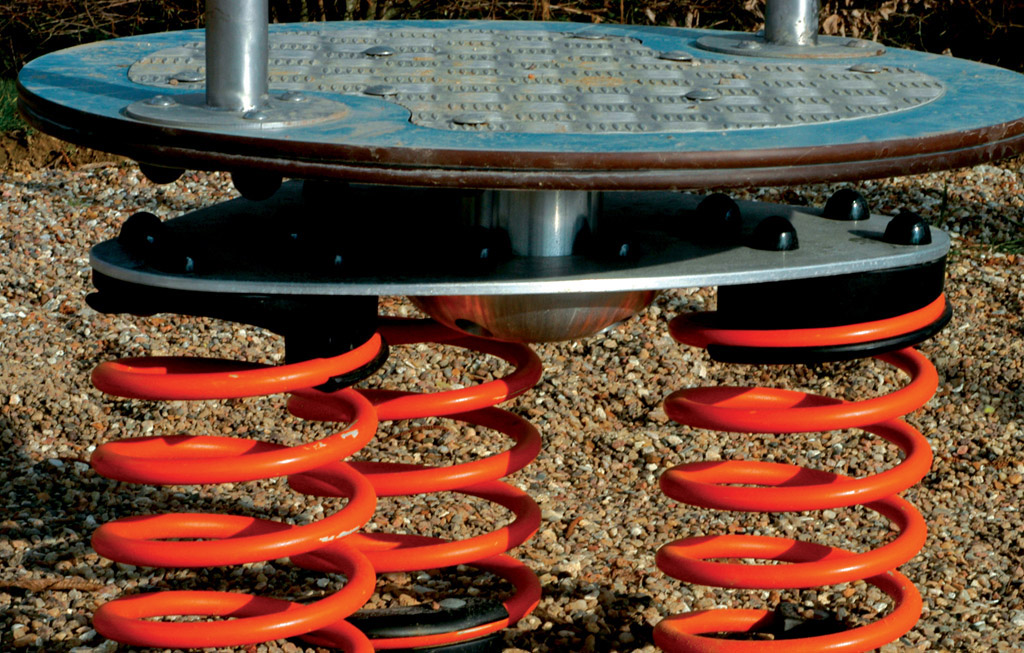

The oscillation system is based on the interaction of three highly resistant steel springs (35SCD6 grade steel) fitted with anti-trap retention components.
