Diabolo - J3835

We have created the reference J3835 in our "Diabolo" range. This play equipment is accessible from 2 years. It can accommodate up to 15 users.

The size of the module is: 4.28 m length, 1.28 m width, 2.94 m. high. The free fall height (FFH) is 1.17 m.

Other finishes available

J3835-C

12 play functions

Climbing x1

Climbing develops the child's motor and psychomotor skills as they balance and deliberate to progress in their movement.

Sliding x1

Sliding is always exciting and fun. On a classic slide or a sliding pole, on your stomach, on your back, as you please.

Meeting x2

Playing together, children meet new faces, new behaviors, new personalities, and how to interact.

Resting x1

Resting allows the child to recover from their exertions, and also improve their concentration.

Handling x1

Handling is a great activity for developing motor skills and abilities in young children while having fun.

Hiding x1

Feel the excitement of being hidden somewhere, and then the pleasure of finally being found.

Sheltering x1

Finding a small refuge to shelter in ensures children have a space of their own.

Climbing x3

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height and space.

Tactile stimulation x1

Each touch-stimulating activity enables children to refine their manual dexterity skills, and the coordination of their gestures.

Specifications

Age range:	2+
Number of users:	15 users
FFH :	1.17 m
Size:	4.28 x 1.28 x 2.94 m

Equipment installation

Number of installers:	2
Installation time:	12:00:00
Concrete volume:	0.15 m3
Surface:	28.50 m2
Total weight:	254.38 kg
Weight of the heaviest element:	17.28 kg

Environmental Indicators

Repairability

9.48 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

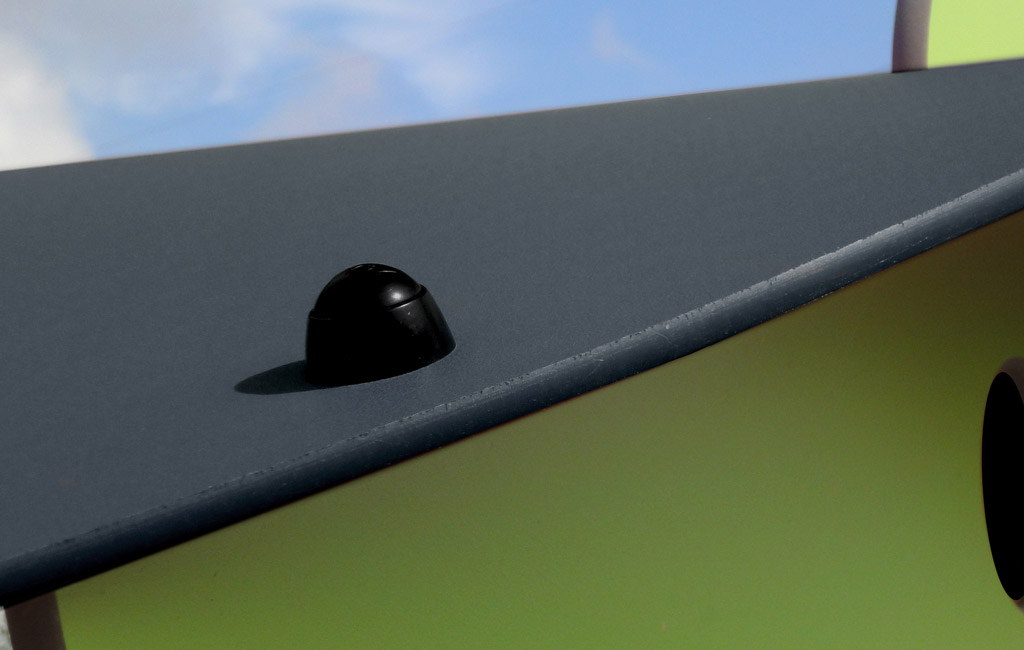

The roof is made of 10mm thick polyethylene plates.

The 125mm diameter posts are made of painted galvanised steel, ensuring robustness and durability. The caps are made of injection moulded polyamide.

The platform and the climbing wall are made from a 12.5mm thick textured and non-slip compact material (HPL).

The climbing holds are made of polypropylene. They are non-toxic, inflammable and shock and UV resistant.

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipment both strong and vandal resistant. Read more
