Diabolo Baby - J38704-C®

We have created the reference J38704-C® in our "Diabolo Baby" range. This play equipment is accessible from 2 years. It can accommodate up to 20 users.

The size of the module is: 4.22 m length, 4.21 m width, 2.00 m. high. The free fall height (FFH) is 1.00 m.

Other finishes available

J38704®

24 play functions

Role play x2

Role play promotes the child's intellectual and social skills.

Sliding x1

Sliding is always exciting and fun. On a classic slide or a sliding pole, on your stomach, on your back, as you please.

Meeting x4

Playing together, children meet new faces, new behaviors, new personalities, and how to interact.

Handling x2

Handling is a great activity for developing motor skills and abilities in young children while having fun.

Crawling x3

Crawling is a fun exercise that allows young children to become aware of their body in a small space.

Hiding x1

Feel the excitement of being hidden somewhere, and then the pleasure of finally being found.

Balancing x1

Balancing involves learning to manage empty space in activities at height, when hanging or on narrow surfaces.

Thinking x1

Thinking helps children become more independent and gain self-confidence through increased understanding and self-awareness.

Tactile stimulation x2

Each touch-stimulating activity enables children to refine their manual dexterity skills, and the coordination of their gestures.

Visual stimulation x1

It awakens curiosity and memorising, stimulating concentration to better assimilate details, or to succeed in the association of colors.

Climbing x1

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height and space.

Traversing x4

Successfully traversing promotes self-confidence and motivates the child to undertake more complex movements.

Climbing x1

Climbing develops the child's motor and psychomotor skills as they balance and deliberate to progress in their movement.

Specifications

Age range:	2+
Number of users:	20 users
FFH :	1.00 m
Size:	4.22 x 4.21 x 2.00 m

Equipment installation

Number of installers:	2
Installation time:	08:00:00
Concrete volume:	0.38 m3
Surface:	39.50 m2
Total weight:	313.44 kg
Weight of the heaviest element:	15.92 kg

Environmental Indicators

Repairability

9.48 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The 125mm diameter posts are made of painted galvanised steel. The grained finish has a slightly undulating surface for increased scratch resistance.

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

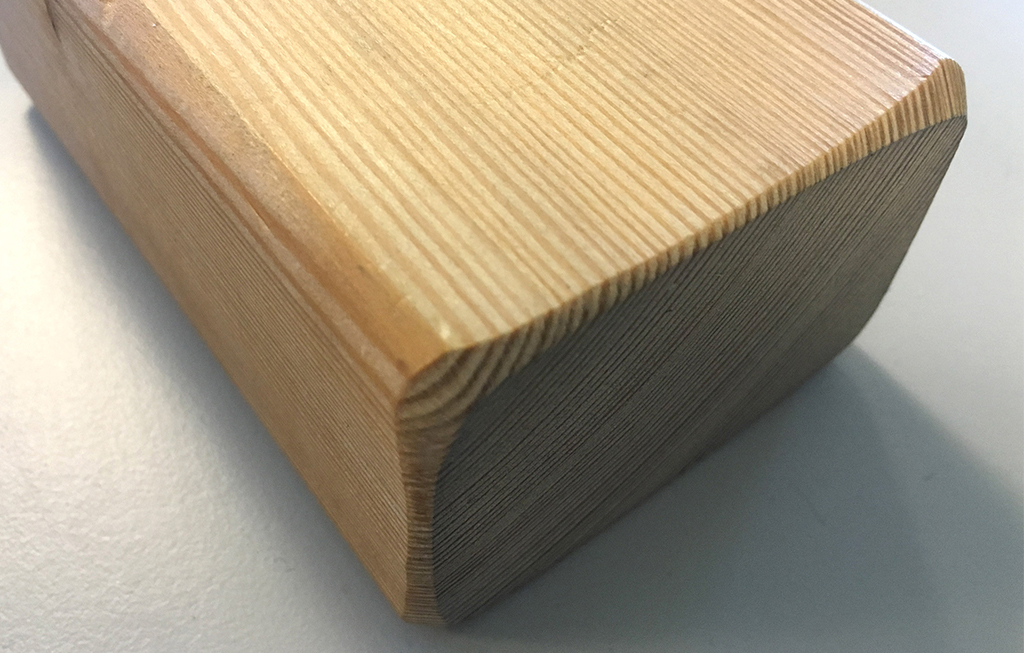

The panels are made from larch (plank sizes 45 x 68mm). Larch is naturally resistant and long lasting.

The platforms, the steps and the climbing wall are made from a 12.5mm thick textured and non-slip compact material (HPL).

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipment both strong and vandal resistant. Read more
