Climbing equipment - Apollo - J410

We have created the reference J410 in our "Climbing equipment" range. This play equipment is accessible from 3 years. It can accommodate up to 11 users.

The size of the module is: 3.09 m length, 1.68 m width, 3.00 m. high. The free fall height (FFH) is 2.70 m.

5 play functions

Balancing x1

Balancing involves learning to manage empty space in activities at height, when hanging or on narrow surfaces.

Role play x1

Role play promotes the child's intellectual and social skills.

Sliding x1

Sliding is always exciting and fun. On a classic slide or a sliding pole, on your stomach, on your back, as you please.

Meeting x1

Playing together, children meet new faces, new behaviors, new personalities, and how to interact.

Hanging x1

This fun activity allows children to explore new ways of playing, of managing space, height and empty space below.

Specifications

Age range:	3+
Number of users:	11 users
FFH :	2.70 m
Size:	3.09 x 1.68 x 3.00 m

Equipment installation

Number of installers:	2
Installation time:	06:15:00
Concrete volume:	0.30 m3
Surface:	31.00 m2
Total weight:	143.22 kg
Weight of the heaviest element:	42.83 kg

Environmental Indicators

Repairability

9.44 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

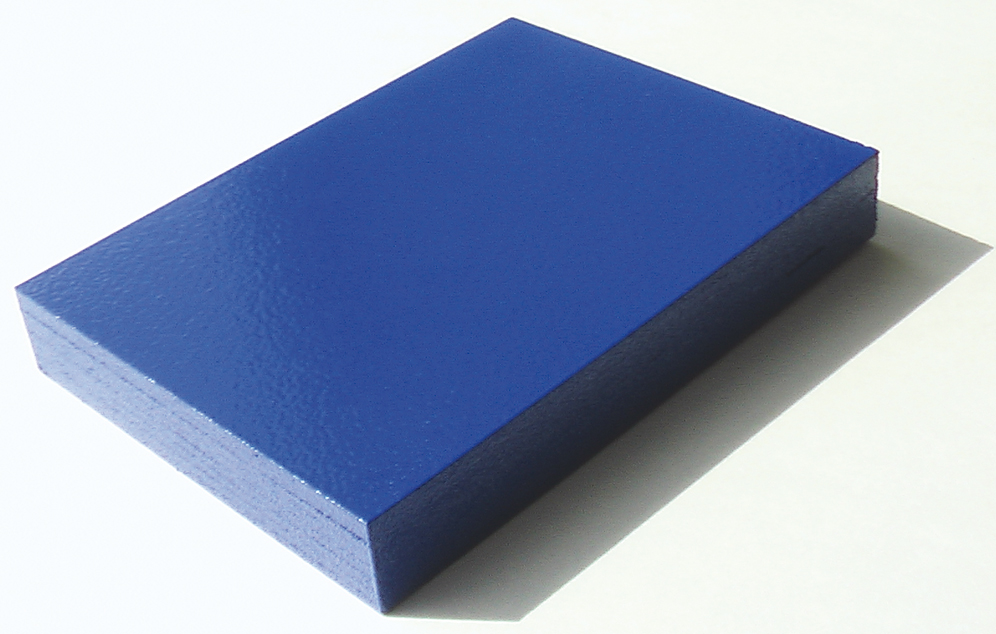

The lacquered panels are made from very high quality plywood 22mm thick, made of alternate layers of thin birch, which offers longevity and an exceptional mechanical... strangth. The colours are applied by electrostatic spraying of two-component polyurethane lacquer that is free of heavy metals, to ensure high levels of resistance to potentially aggressive chemicals such as anti-graffiti cleaning products. Read more

The vertical 95mm square post are made of laminated timber, which have not been treated with chrome or arsenic. Splinter-free, the laminate provides great strength and dimensional... stability. The posts are protected from wear and tear caused by fungi and insects. The posts are protected by injected polyamide caps. Read more

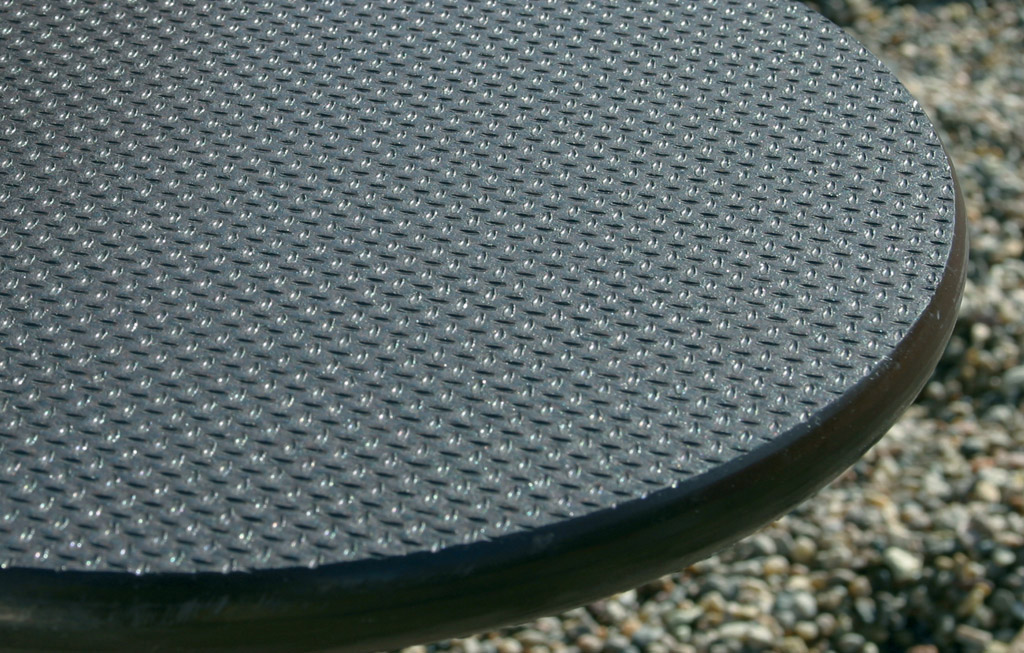

The platforms and the climbing wall are 21mm plywood panels made up of layers of birch. The surface is coated with a film of non-slip phenolic resin.

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipment both strong and vandal resistant. Read more
