Proludic Australia
Pod seat
J435®
We have created the reference J435® in our "Swings" range. This play equipment is accessible from 2 years. It can accommodate up to 5 users.
The size of the module is: 3.34 m length, 1.98 m width, 2.60 m. high. The free fall height (FFH) is 1.46 m.
| Age range: | 2+ |
| Number of users: | 5 users |
| FFH : | 1.46 m |
| Size: | 3.34 x 1.98 x 2.60 m |
| Number of installers: | 2 |
| Installation time: | 01:30:00 |
| Concrete volume: | 0.11 m3 |
| Surface: | 15.00 m2 |
| Total weight: | 173.05 kg |
| Weight of the heaviest element: | 42.49 kg |
Repairability
9.29 /10
The 95 x 95mm posts are made of painted galvanised steel, ensuring robustness and durability.

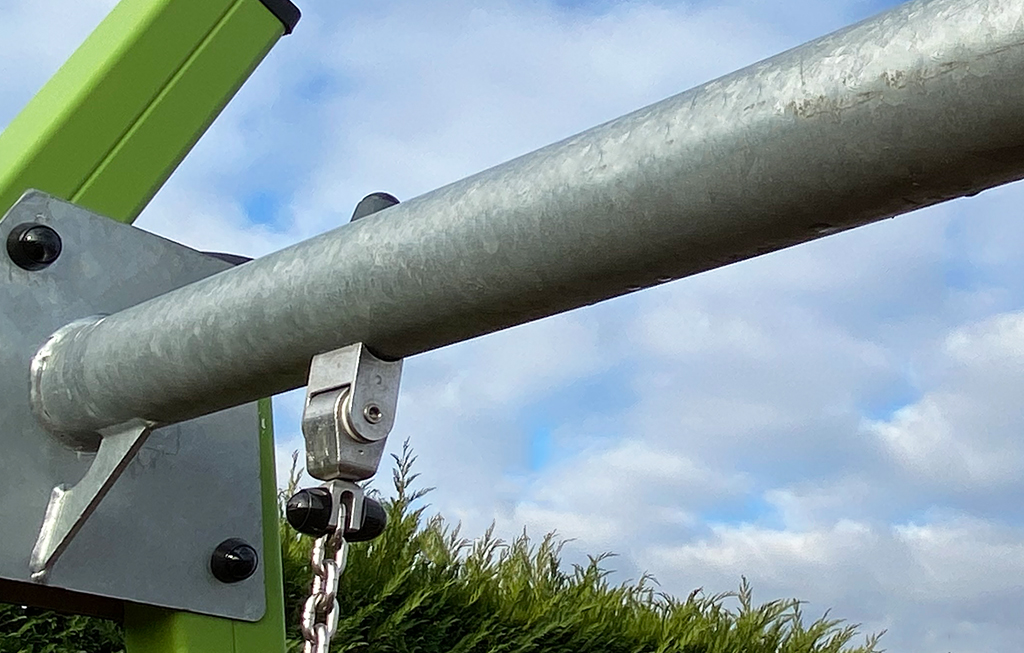

The horizontal beam is made of non-painted galvanised steel.
The pod is made from a single piece of 30%-recycled rotomoulded polyethylene. It is fixed to a stainless steel frame that is fitted with buffers. The pod is... suspended from galvanised steel ropes covered by PVC. Read more
PVC sliding rings are fitted to limit the wear of the metal parts over time. The rings are accessed by a vandal proof, stainless steel shackle. The swing chains are... made of galvanised steel. Read more

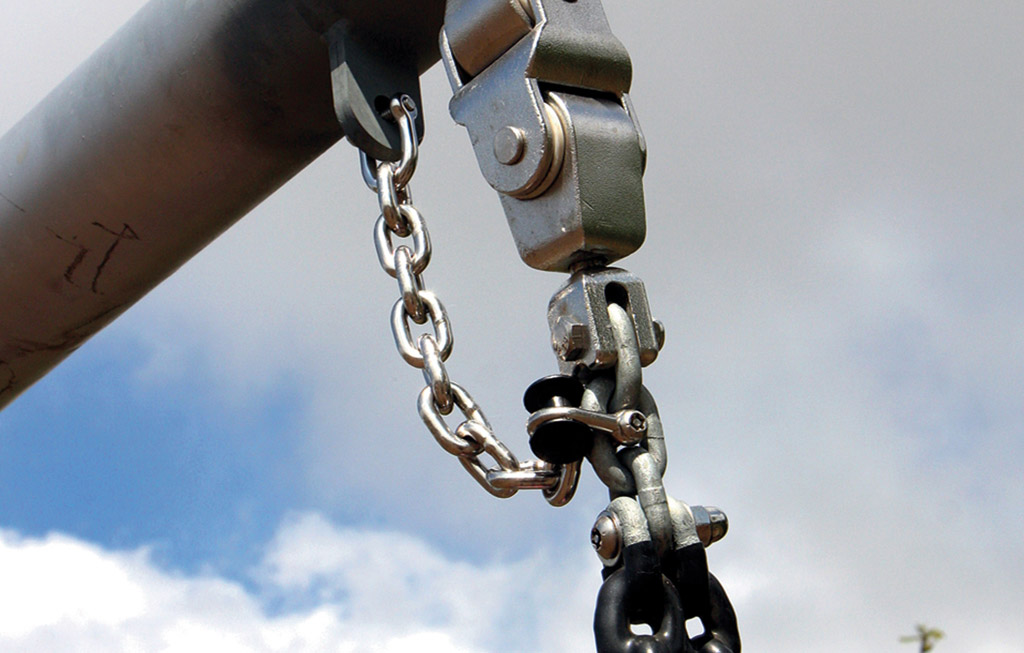

The double joined swing mechanism is made of stainless steel. A safety chain provides additional support for the pod.
The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.
The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
