Swings - 1 duo seat, 1 flat seat - J437

We have created the reference J437 in our "Swings" range. This play equipment is accessible from 1 year. It can accommodate up to 2 users.

The size of the module is: 3.30 m length, 2.00 m width, 2.60 m. high. The free fall height (FFH) is 1.39 m.

Other finishes available

J437-C

7 play functions

Meeting x1

Playing together, children meet new faces, new behaviors, new personalities, and how to interact.

Resting x3

Resting allows the child to recover from their exertions, and also improve their concentration.

Swinging x3

To create movement, children must be able to coordinate their arms, legs and vision in a coordinated fashion.

Specifications

Age range:	1+
Number of users:	2 users
FFH :	1.39 m
Size:	3.30 x 2.00 x 2.60 m

Equipment installation

Number of installers:	2
Installation time:	02:00:00
Concrete volume:	0.11 m3
Surface:	18.80 m2
Total weight:	149.08 kg
Weight of the heaviest element:	28.50 kg

Environmental Indicators

Repairability

9.29 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Video - Swings - 1 duo seat, 1 flat seat - J437

Materials

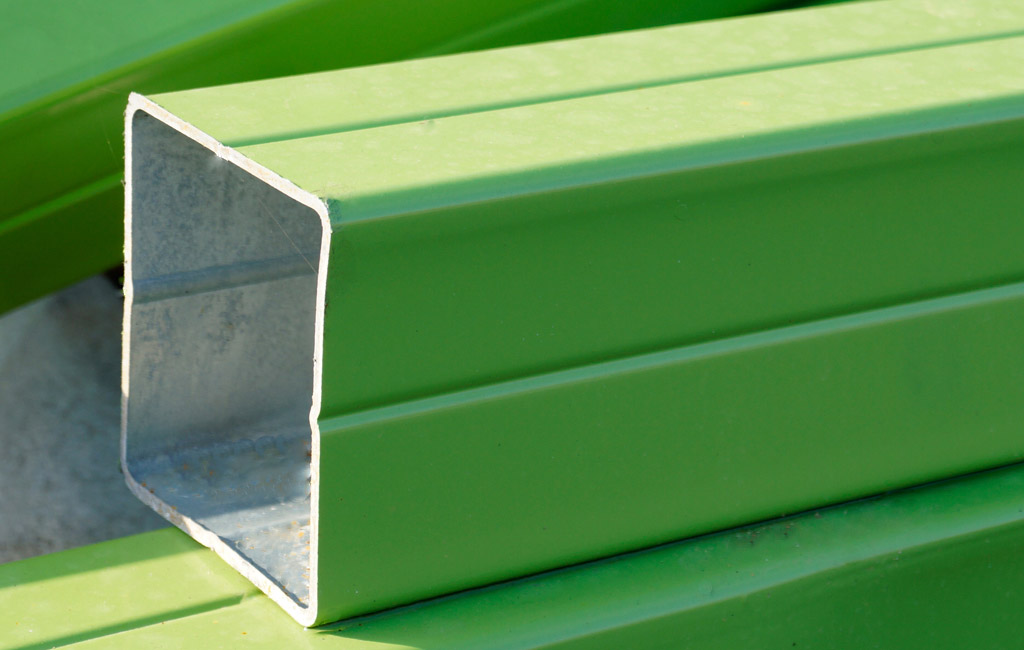

The 95 x 95mm posts are made of painted galvanised steel, ensuring robustness and durability.

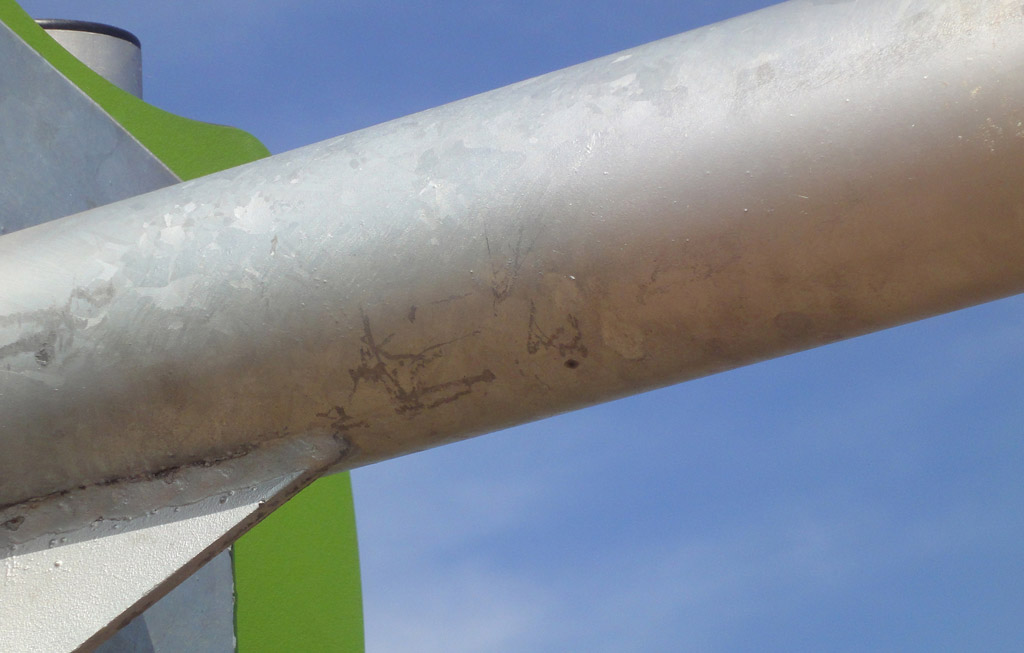

The horizontal beam is manufactured from 89mm diameter galvanised steel.

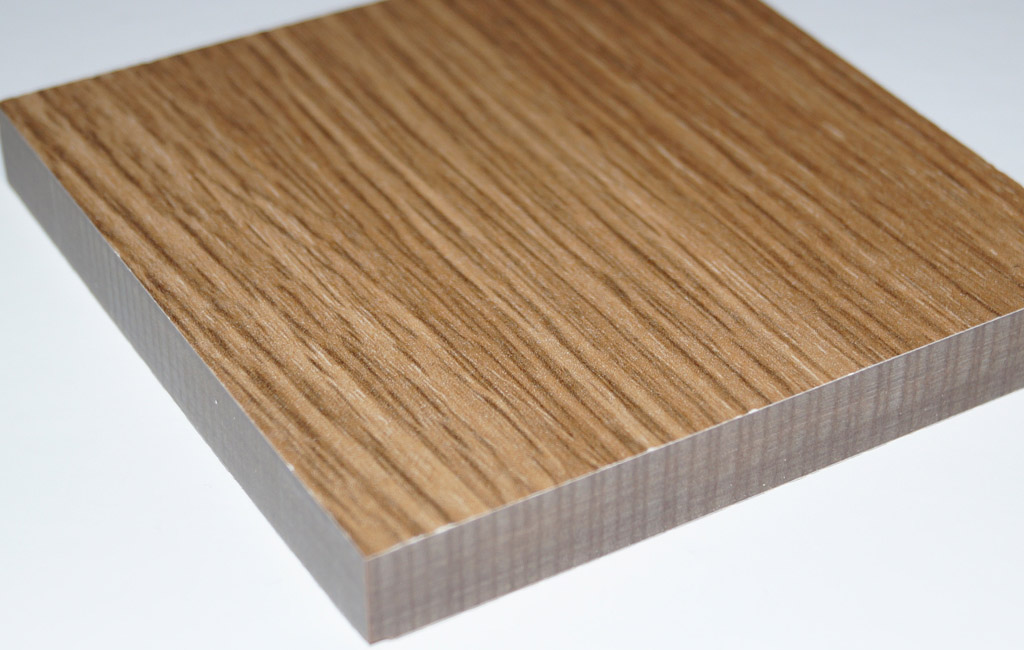

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

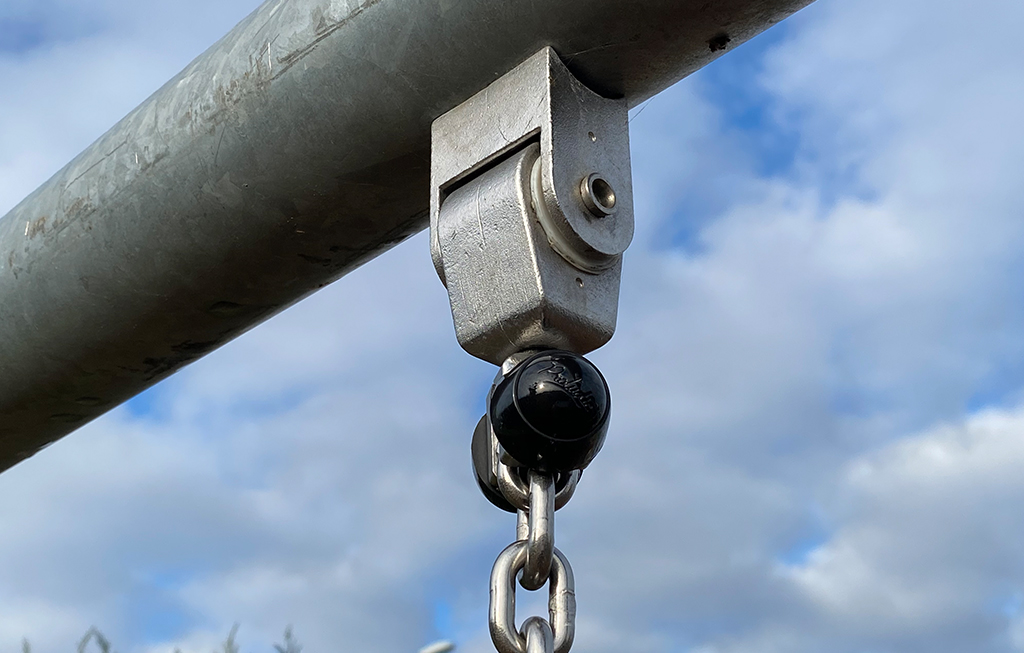

The swing bearings are made of stainless steel.

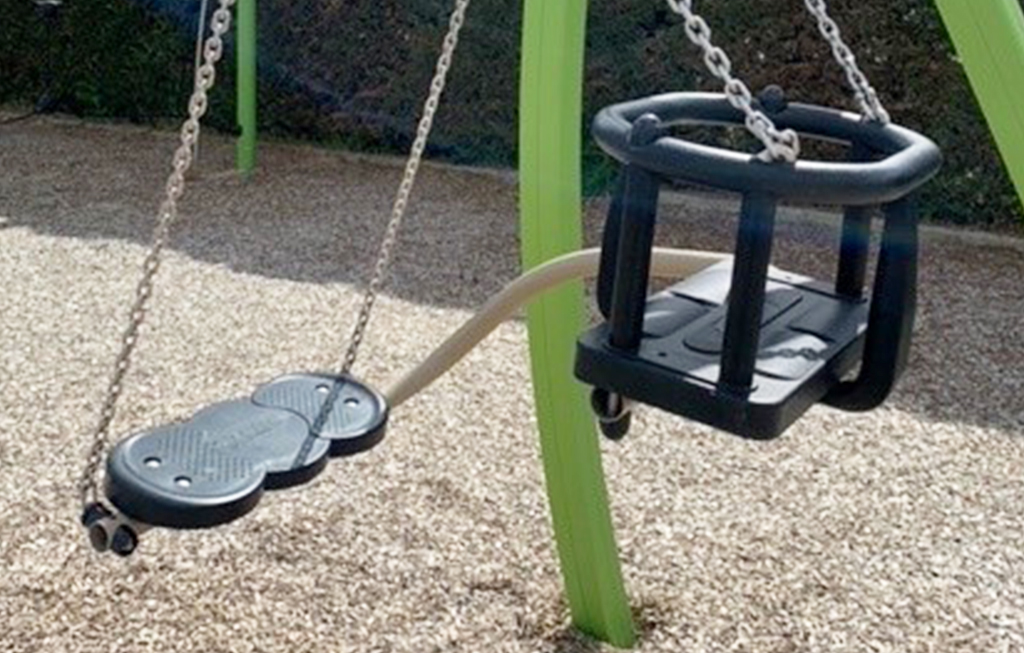

The Parent/Child seat consists of 2 seats, connected by a painted stainless steel structure. The Parent seat is made of shock absorbing moulded honeycomb rubber. The seat... fixing brackets are made of 10mm stainless steel wire. The pod swing seat for early childhood is made of polyurethane, which ensures a comfortable seating. The swing chains are made of stainless steel. Read more

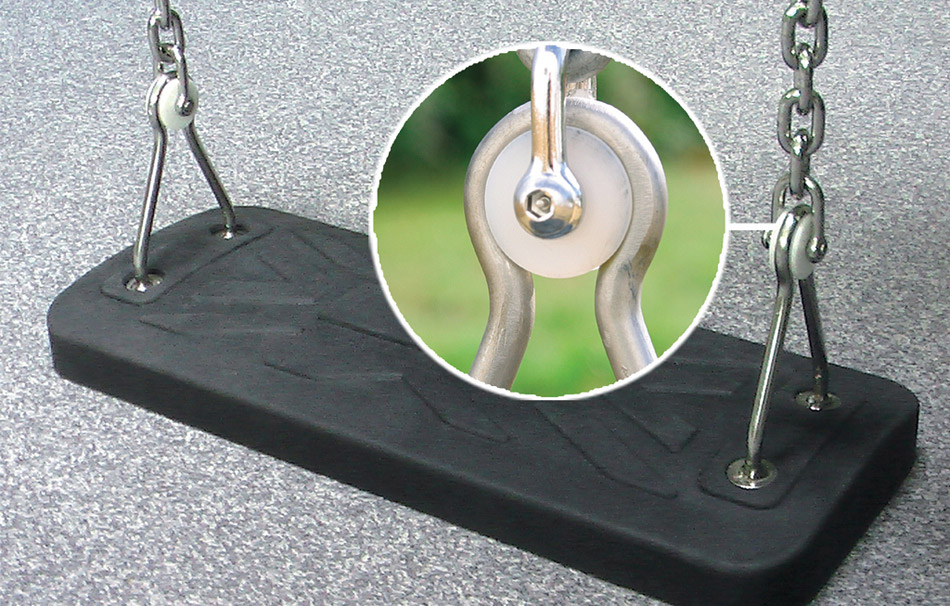

The classic swing seat is made of shock absorbing moulded honeycomb rubber. The swing chains are made of stainless steel. The seat fixing brackets are made of 10mm... stainless steel wire. PVC sliding rings are fitted to limit the wear of the metal parts over time. The rings are accessed by a vandal proof, stainless steel shackle. Read more
