Swings - Basket Swing - J443®

We have created the reference J443® in our "Swings" range. This play equipment is accessible from 2 years. It can accommodate up to 5 users.

The size of the module is: 2.71 m length, 1.21 m width, 1.60 m. high. The free fall height (FFH) is 0.94 m.

3 play functions

Swinging x1

To create movement, children must be able to coordinate their arms, legs and vision in a coordinated fashion.

Meeting x1

Playing together, children meet new faces, new behaviors, new personalities, and how to interact.

Resting x1

Resting allows the child to recover from their exertions, and also improve their concentration.

Specifications

Age range:	2+
Number of users:	5 users
FFH :	0.94 m
Size:	2.71 x 1.21 x 1.60 m

Equipment installation

Number of installers:	2
Installation time:	01:00:00
Concrete volume:	0.40 m3
Surface:	12.00 m2
Total weight:	64.87 kg
Weight of the heaviest element:	28.62 kg

Environmental Indicators

Repairability

9.29 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

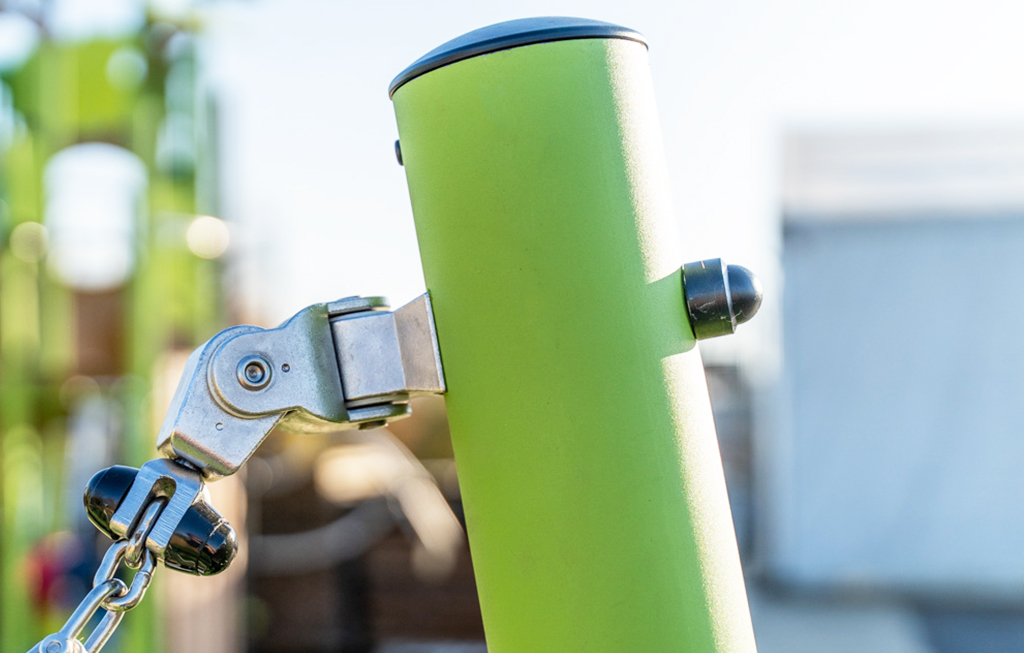

The 102mm diameter posts are made of painted galvanised steel.

The braided rope seat is made of galvanised steel, covered in polyester. The connecting parts are in painted aluminium. The seat is fitted to a stainless steel frame... structure, made up of two 40 mm diameter posts, and is suspended from small link stainless steel chains. Read more
