Biibox - Biibox XXL - J45417

We have created the reference J45417 in our "Biibox" range. This play equipment is accessible from 3 years. It can accommodate up to 45 users.

The size of the module is: 17.56 m length, 13.54 m width, 4.36 m. high. The free fall height (FFH) is 2.90 m.

35 play functions

Climbing x1

Climbing develops the child's motor and psychomotor skills as they balance and deliberate to progress in their movement.

Role play x1

Role play promotes the child's intellectual and social skills.

Sliding x2

Sliding is always exciting and fun. On a classic slide or a sliding pole, on your stomach, on your back, as you please.

Meeting x5

Playing together, children meet new faces, new behaviors, new personalities, and how to interact.

Resting x2

Resting allows the child to recover from their exertions, and also improve their concentration.

Handling x1

Handling is a great activity for developing motor skills and abilities in young children while having fun.

Hanging x1

This fun activity allows children to explore new ways of playing, of managing space, height and empty space below.

Crawling x1

Crawling is a fun exercise that allows young children to become aware of their body in a small space.

Swinging x1

To create movement, children must be able to coordinate their arms, legs and vision in a coordinated fashion.

Hiding x1

Feel the excitement of being hidden somewhere, and then the pleasure of finally being found.

Balancing x3

Balancing involves learning to manage empty space in activities at height, when hanging or on narrow surfaces.

Rotating x1

Rotating allows the child to experience thrills and speed, to feel that "head spinning" effect, or their feet taking off.

Sheltering x3

Finding a small refuge to shelter in ensures children have a space of their own.

Climbing x7

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height and space.

Traversing x5

Successfully traversing promotes self-confidence and motivates the child to undertake more complex movements.

Specifications

Age range:	3+
Number of users:	45 users
FFH :	2.90 m
Size:	17.56 x 13.54 x 4.36 m

Equipment installation

Number of installers:	4
Installation time:	43:00:00
Concrete volume:	1.80 m3
Surface:	175.50 m2
Total weight:	1813.88 kg
Weight of the heaviest element:	65.00 kg

Environmental Indicators

Repairability

9.48 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The 125mm diameter posts are made of painted galvanised steel. The grained finish has a slightly undulating surface for increased scratch resistance.

The caps are made of rotary moulded polyethylene (A) or injection moulded polyamide (B).

The platforms are made from a 12.5mm thick, textured, non-slip compact material (HPL). Further reinforcement is provided by lacquered galvanised steel supports,... located on the underside of the platforms. Read more

The play walls and roofs are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

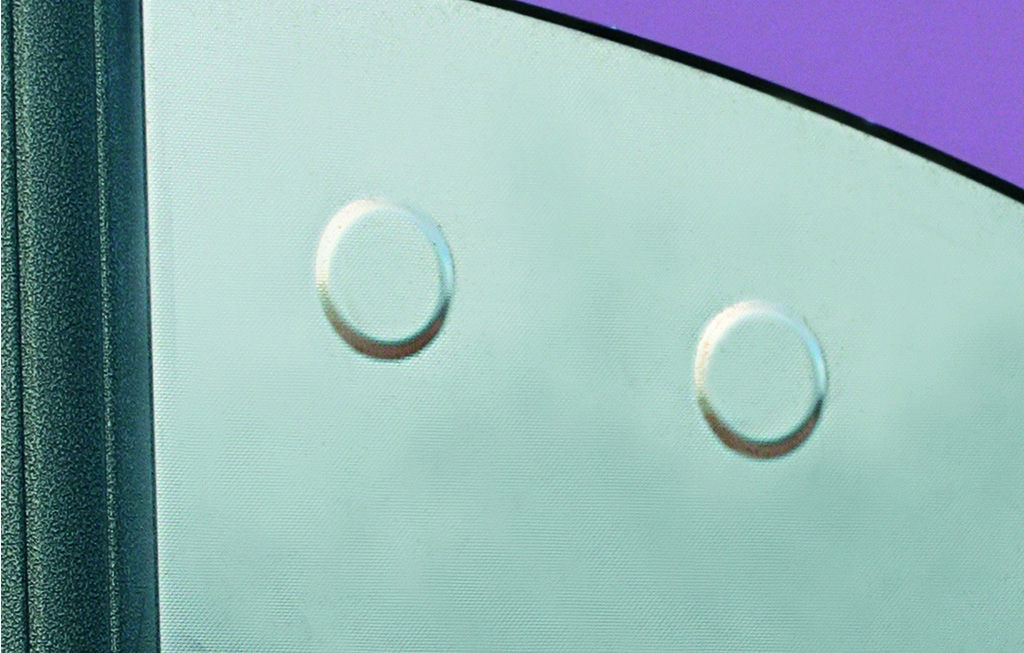

Stainless steel version: the play walls bring together a coloured panel and a stainless steel sheet, 1.5mm thick with a patterned surface on both sides to make it scratch-proof. The roofs... are made of polyethylene 10mm thick. Read more

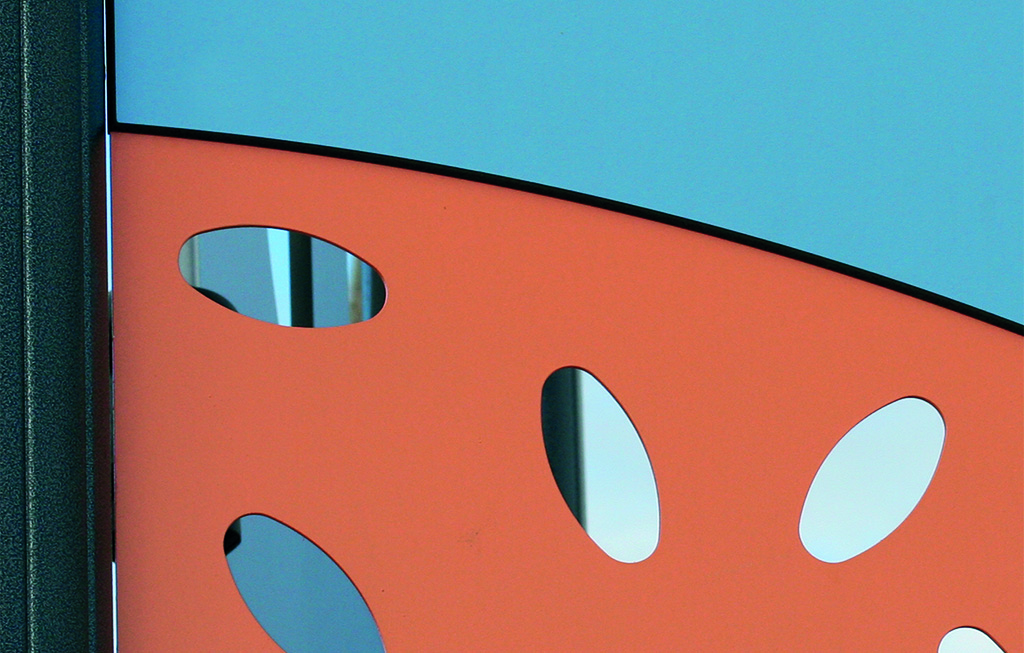

Aluminium version: the play walls and roofs are made of painted aluminium sheet 3mm thick, backed with a coloured panel.

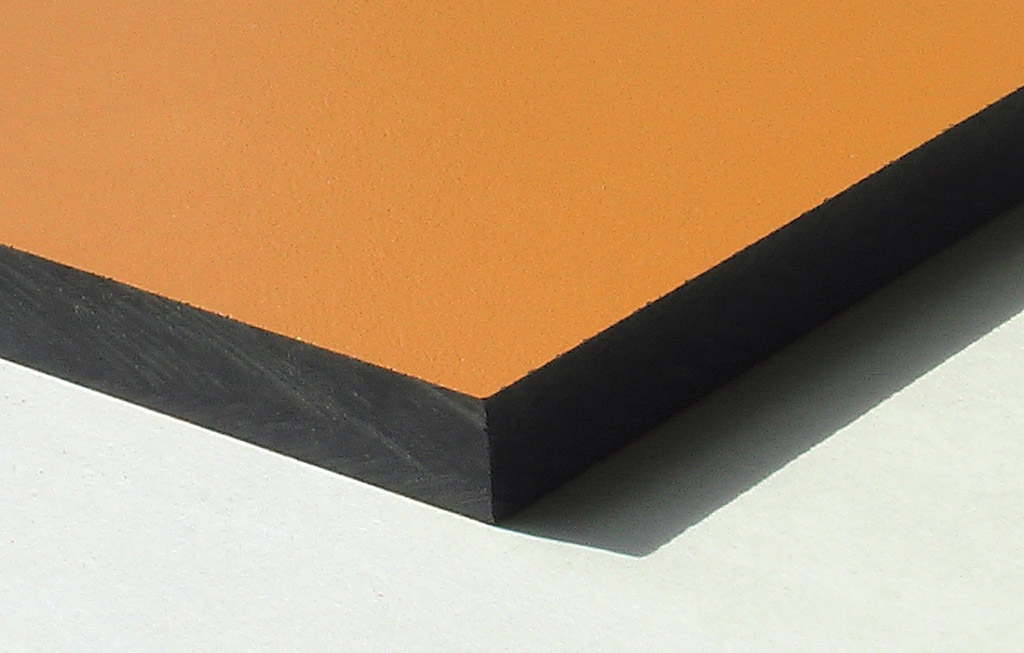

The climbing walls are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The climbing holds are made of polyamide for its strength and rigidity.

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipment both strong and vandal resistant. Read more
