Swings - 2 flat seats - J476

We have created the reference J476 in our "Swings" range. This play equipment is accessible from 2 years. It can accommodate up to 2 users.

The size of the module is: 3.23 m length, 0.21 m width, 2.14 m. high. The free fall height (FFH) is 1.20 m.

2 play functions

Swinging x1

To create movement, children must be able to coordinate their arms, legs and vision in a coordinated fashion.

Meeting x1

Playing together, children meet new faces, new behaviors, new personalities, and how to interact.

Specifications

Age range:	2+
Number of users:	2 users
FFH :	1.20 m
Size:	3.23 x 0.21 x 2.14 m

Equipment installation

Number of installers:	2
Installation time:	01:30:00
Concrete volume:	0.50 m3
Surface:	19.50 m2
Total weight:	90.98 kg
Weight of the heaviest element:	40.36 kg

Environmental Indicators

Repairability

9.29 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The 125mm diameter posts are made of painted galvanised steel. The grained finish has a slightly undulating surface for increased scratch resistance.

The horizontal beam is made of non-painted galvanised steel.

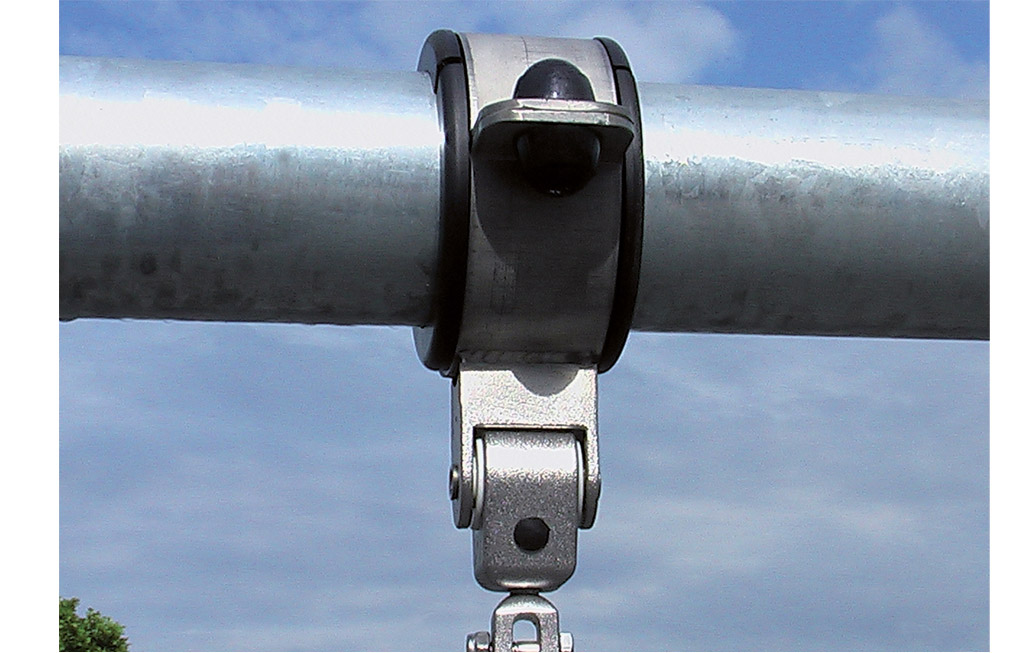

The anti-wrapping system consists of polyamide parts and stainless steel collars. The swing bearings are made of stainless steel.

The swing seats are made of shock absorbing moulded honeycomb rubber. The swing chains are made of stainless steel. The seat fixing brackets are made of 10mm... stainless steel wire. PVC sliding rings are fitted to limit the wear of the metal parts over time. The rings are accessed by a vandal proof, stainless steel shackle. Read more
