Climbing and balancing trails - Canopy Net - J4917

We have created the reference J4917 in our "Climbing and balancing trails" range. This play equipment is accessible from 3 years. It can accommodate up to 20 users.

The size of the module is: 4.75 m length, 3.88 m width, 2.91 m. high. The free fall height (FFH) is 2.20 m.

11 play functions

Climbing x1

Climbing develops the child's motor and psychomotor skills as they balance and deliberate to progress in their movement.

Sliding x2

Sliding is always exciting and fun. On a classic slide or a sliding pole, on your stomach, on your back, as you please.

Meeting x1

Playing together, children meet new faces, new behaviors, new personalities, and how to interact.

Resting x1

Resting allows the child to recover from their exertions, and also improve their concentration.

Hanging x1

This fun activity allows children to explore new ways of playing, of managing space, height and empty space below.

Balancing x2

Balancing involves learning to manage empty space in activities at height, when hanging or on narrow surfaces.

Climbing x3

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height and space.

Specifications

Age range:	3+
Number of users:	20 users
FFH :	2.20 m
Size:	4.75 x 3.88 x 2.91 m

Equipment installation

Number of installers:	2
Installation time:	30:00:00
Concrete volume:	0.61 m3
Surface:	52.50 m2
Total weight:	436.80 kg
Weight of the heaviest element:	38.50 kg

Environmental Indicators

Repairability

9.48 /10

Downloads

Technical fact sheet

Materials sheet

JPEG Image

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The posts with average diameter 120 to 140mm are made from sap free robinia. The robinia is sanded and has had its bark removed. Robinia is naturally rot proof and does not require any additional... chemical protection; it is equally extremely resistant to attacks from external sources (insects, fungi, climatic variations), guaranteeing the long term durability of the playground equipment. Read more

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipment both strong and vandal resistant. Read more

The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.

The climbing wall is made from a 12.5mm thick textured and non-slip compact material (HPL).

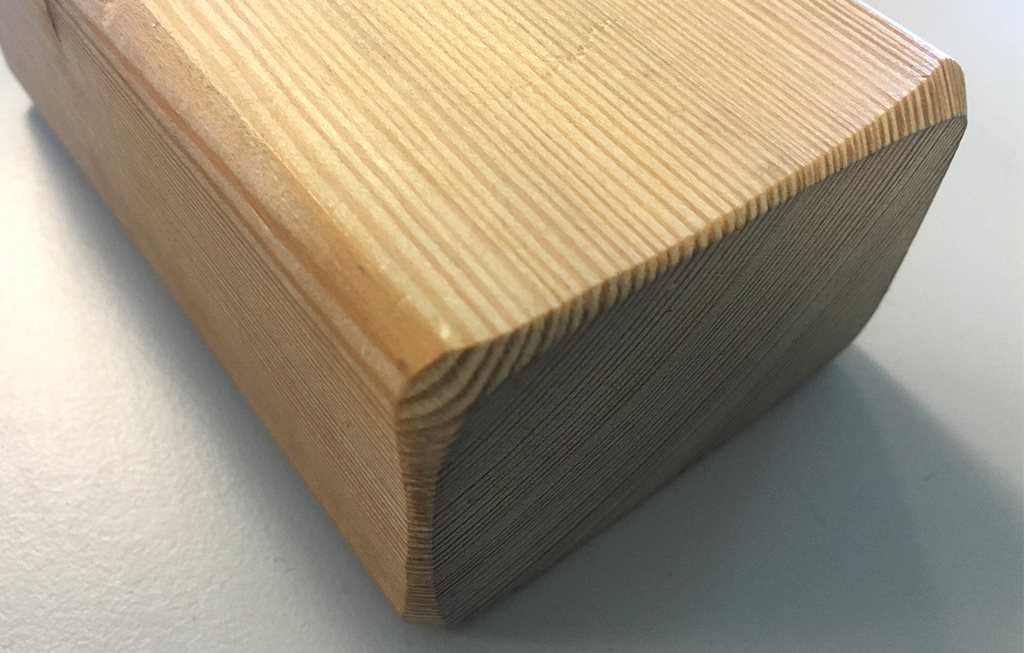

The beams are made from natural Robinia wood or Douglas fir (plank sizes 45 x 68mm). Robinia wood or Douglas fir is naturally resistant and long lasting.

The climbing holds are made of polyamide for its strength and rigidity.

The ladder rungs are made of acacia wood which is naturally rot-resistant and smooth to the touch. They are mounted on a 16mm diameter polyester cable.
