The Sand Factory - Sand Factory XL - J5002

We have created the reference J5002 in our "The Sand Factory" range. This play equipment is accessible from 2 years. It can accommodate up to 20 users.

The size of the module is: 8.10 m length, 6.55 m width, 2.20 m. high. The free fall height (FFH) is 0.60 m.

Other finishes available

J5002-M

44 play functions

Meeting x5

Playing together, children meet new faces, new behaviors, new personalities, and how to interact.

Handling x13

Handling is a great activity for developing motor skills and abilities in young children while having fun.

Thinking x8

Thinking helps children become more independent and gain self-confidence through increased understanding and self-awareness.

Tactile stimulation x13

Each touch-stimulating activity enables children to refine their manual dexterity skills, and the coordination of their gestures.

Role play x2

Role play promotes the child's intellectual and social skills.

Resting x1

Resting allows the child to recover from their exertions, and also improve their concentration.

Climbing x2

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height and space.

Specifications

Age range:	2+
Number of users:	20 users
FFH :	0.60 m
Size:	8.10 x 6.55 x 2.20 m

Equipment installation

Number of installers:	2
Installation time:	08:00:00
Concrete volume:	0.70 m3
Surface:	65.00 m2
Total weight:	472.39 kg
Weight of the heaviest element:	21.92 kg

Environmental Indicators

Repairability

9.46 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The vertical 95mm square post are made of laminated timber, which have not been treated with chrome or arsenic. Splinter-free, the laminate provides great strength and dimensional... stability. The posts are protected from wear and tear caused by fungi and insects. The posts are protected by injected polyamide caps. Read more

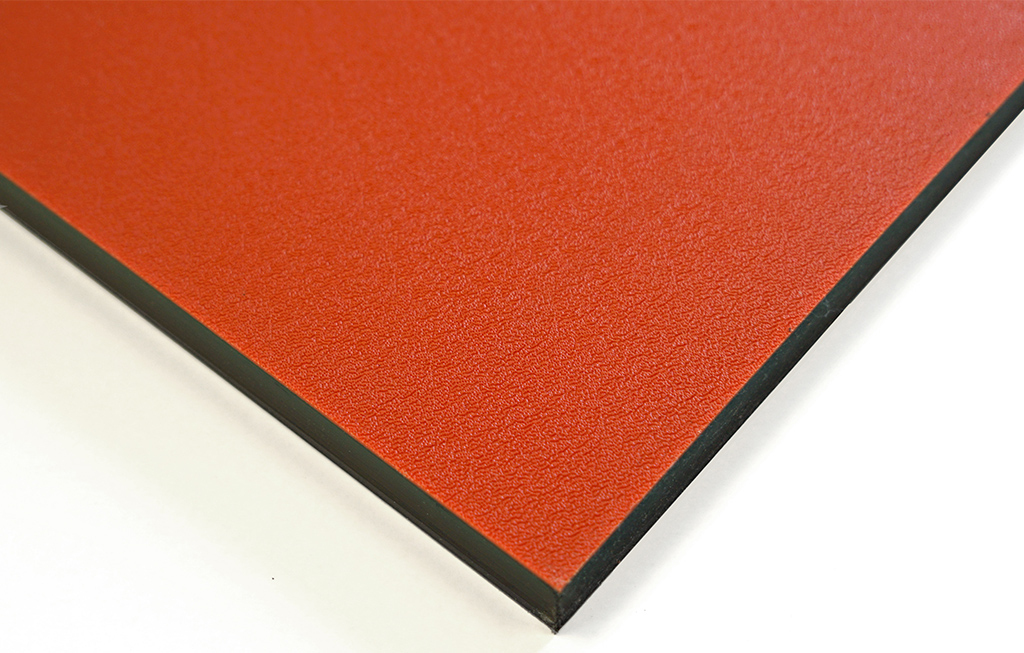

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

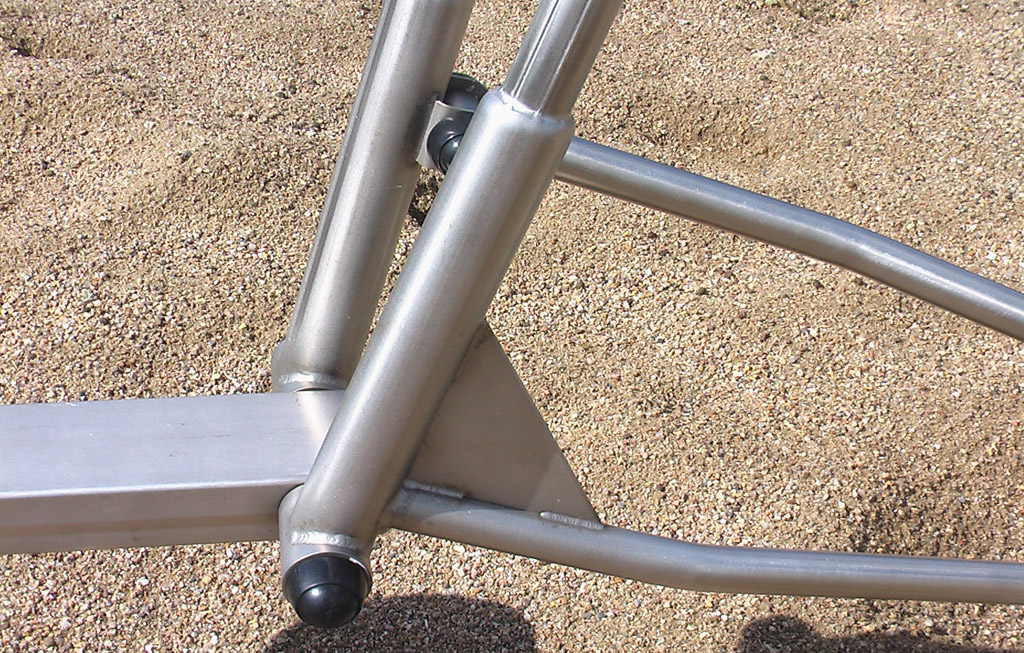

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipment both strong and vandal resistant. Read more
