Proludic Australia
Skyrail
J515
We have created the reference J515 in our "Cableways" range. This play equipment is accessible from 4 years. It can accommodate up to 1 user.
The size of the module is: 6.11 m length, 3.34 m width, 3.30 m. high. The free fall height (FFH) is 1.00 m.
| Age range: | 4+ |
| Number of users: | 1 user |
| FFH : | 1.00 m |
| Size: | 6.11 x 3.34 x 3.30 m |
| Number of installers: | 2 |
| Installation time: | 10:00:00 |
| Concrete volume: | 0.20 m3 |
| Surface: | 39.00 m2 |
| Total weight: | 116.49 kg |
| Weight of the heaviest element: | 42.16 kg |
Repairability
9.06 /10
The 125mm diameter post is made of painted galvanised steel. The two-tone grey grained finish has a slightly undulating surface for increased scratch resistance. The cap is... made of rotary moulded polyethylene. Read more
The tubes are made of stainless steel, guaranteeing lasting durability and reliability of the equipment.
The one-piece rail is made of stainless steel, Ø 76.1mm, 3.6mm thick. The trolley is made of stainless steel ensuring its durability.
The handle is made of of stainless steel.

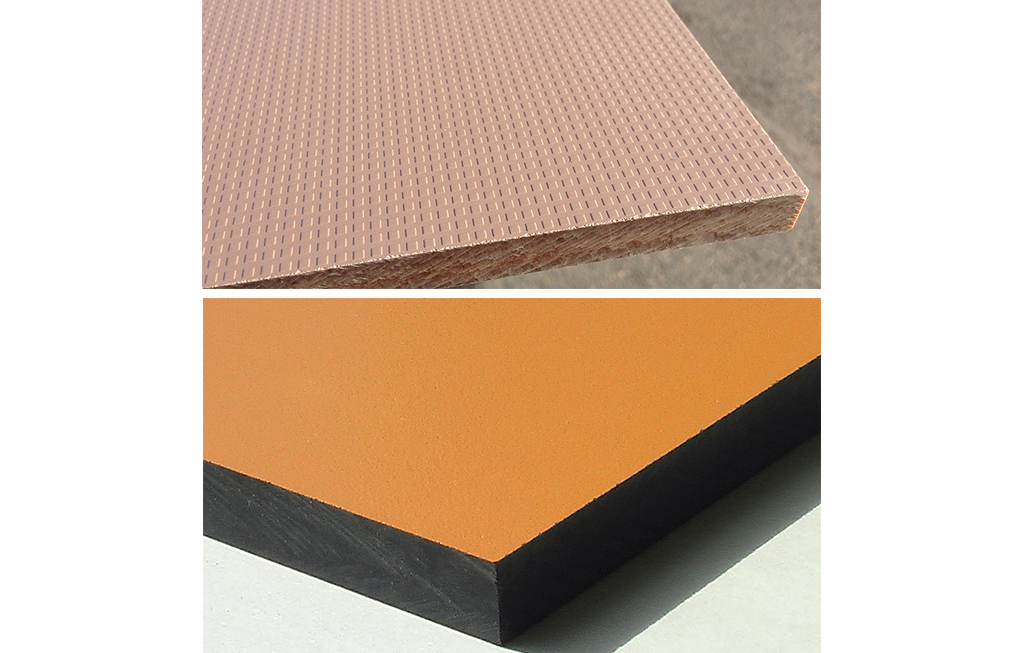

The platform is made from a textured, non-slip compact material (HPL). Further reinforcement is provided by coloured panels, made from a compact material, 70%... softwood fibre and 30% thermosetting resin, which stands up to weathering very well. The coloured sides are coated with pigmented acrylic polyurethane resins. This protects them from ultraviolet radiation and damage. Read more
The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
