In brief

Sports Equation

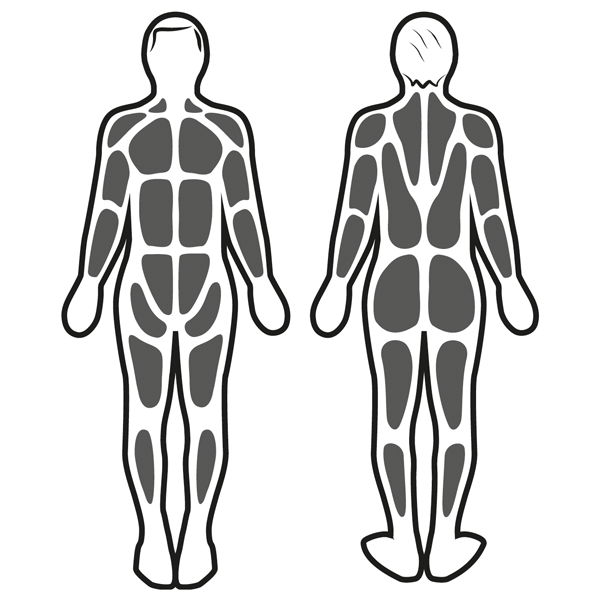

Muscle stimulation

ACTI’Street - Inclusive combination 2 - J5219®

We have created the reference J5219® in our "ACTI’Street" range. This activity equipment is accessible from 14 years. It can accommodate up to 16 users.

Combination for all levels including low elements for beginners, inclusive elements for wheelchair users and challenging elements (bars for human flag exercises and freestyle use) for athletes.

24 sports activities

Getting across x1

Hanging x7

Flag x4

Pull-ups x7

Dips x1

Push-ups x2

Squats x1

Abs x1

6 sports activities

Application Acti'Fun

Sensations

Progressive design

Sharing

Diversity

Challenge

Specifications

Age range:	14+
Number of users:	16 users
FFH :	1.70 m
Size:	5.88 x 4.73 x 2.32 m

Equipment installation

Number of installers:	3
Installation time:	10:00:00
Concrete volume:	2.20 m3
Surface:	51.00 m2
Total weight:	394.95 kg
Weight of the heaviest element:	22.86 kg

Environmental Indicators

Repairability

8.65 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Video - ACTI’Street - Inclusive combination 2 - J5219®

Materials

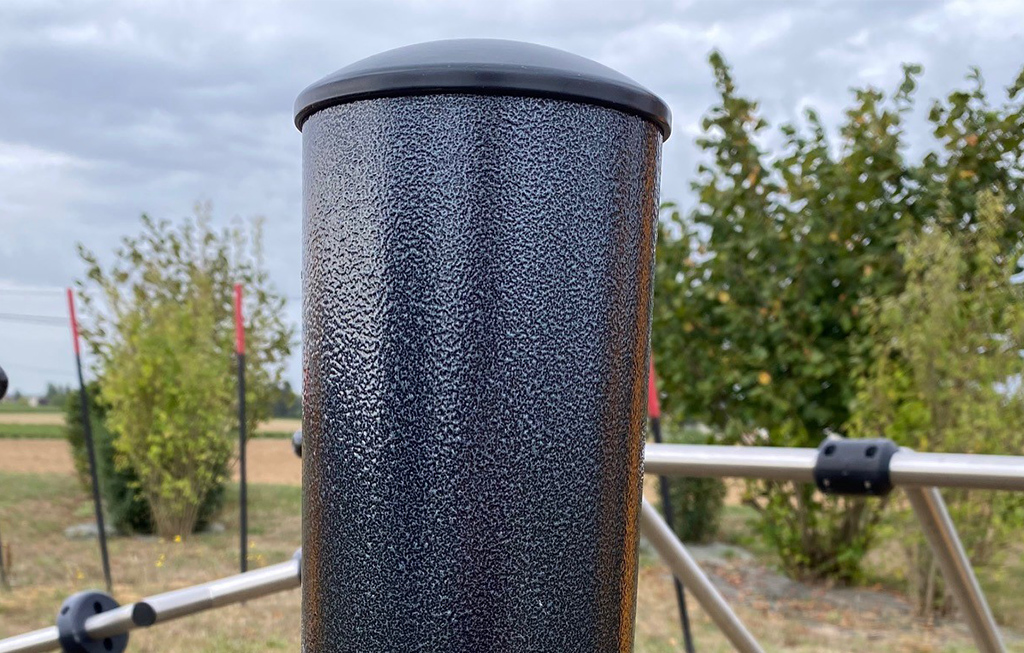

The 102mm diameter posts are made of painted galvanised steel. The grained finish has a slightly undulating surface for increased scratch resistance. The caps are made of... painted aluminium. Read more

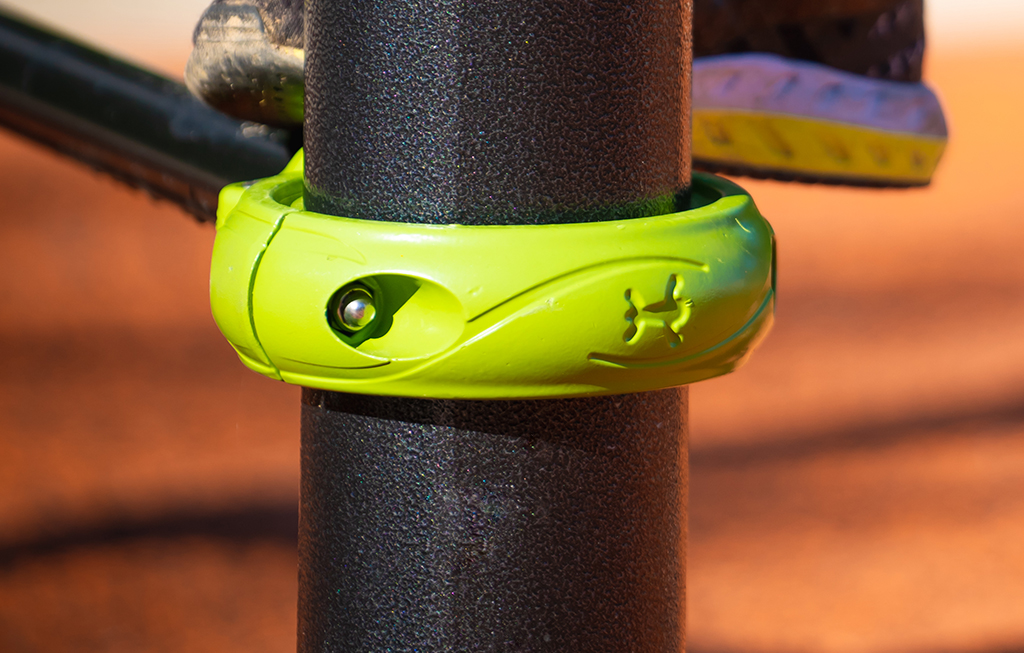

The fixing collars are made of painted aluminium.

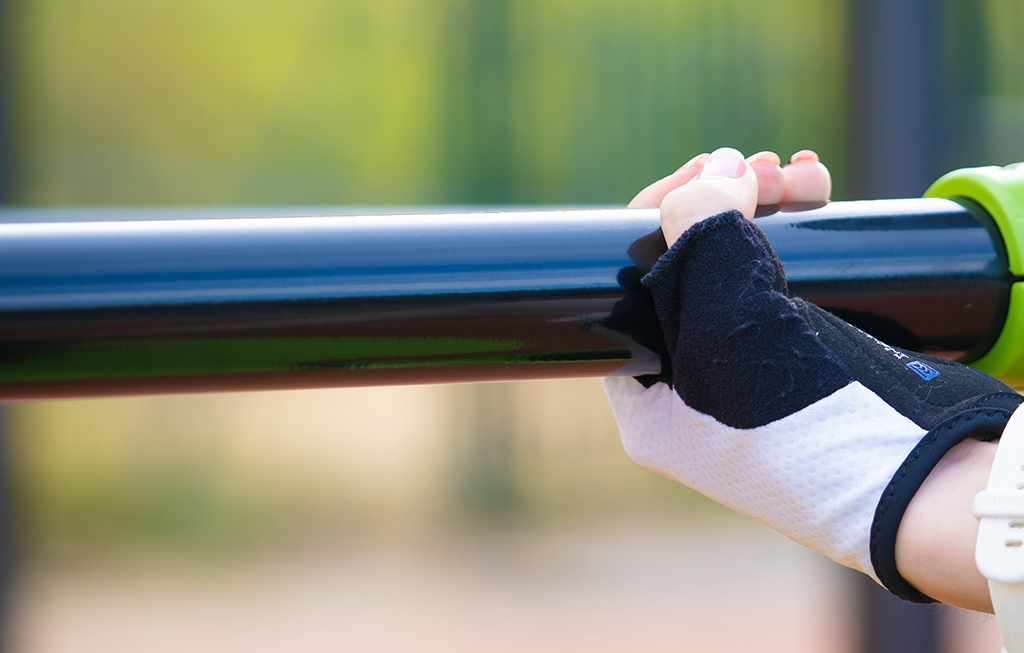

The tubes are made of electro-galvanized steel (diameter 34 mm) and stainless steel (diameter 40 mm), coated with epoxy paint. Electrogalvanization ensures... corrosion resistance and gives a high quality finish. Stainless steel guarantees the longevity and robustness of the equipment over time. The epoxy paint provides better grip. Read more

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.
