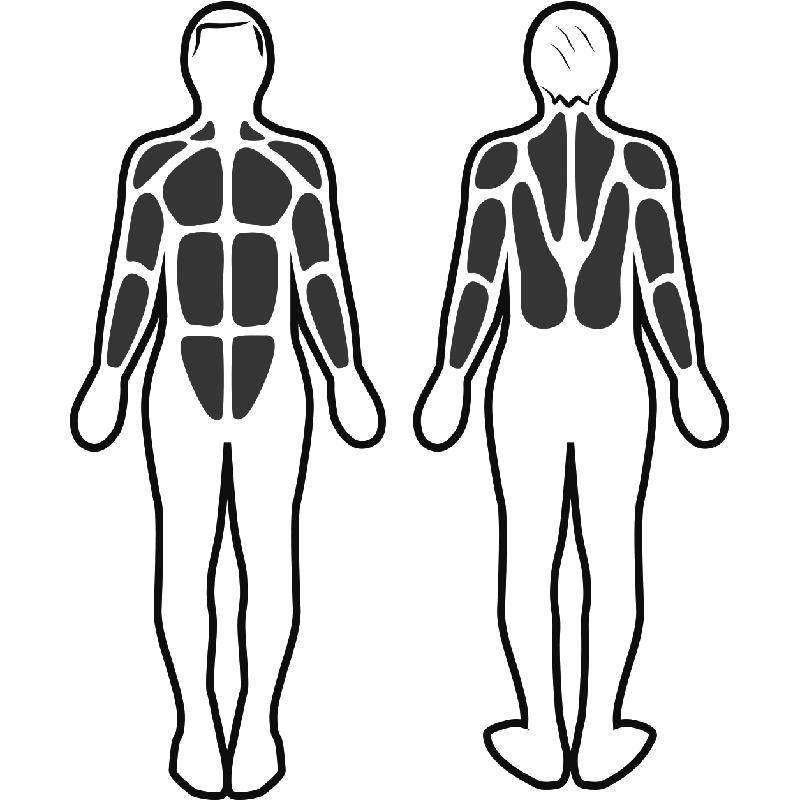

Muscle stimulation

Muscle stimulation

Movement

Movement

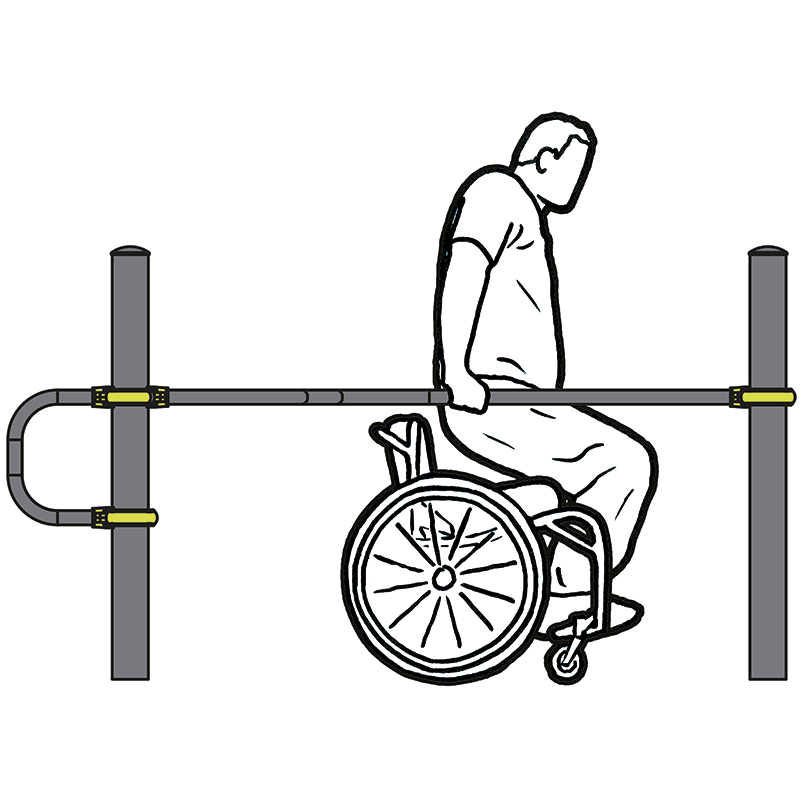

ACTI’Street - Inclusive parallel bars - J5227

We have created the reference J5227 in our "ACTI’Street" range. This activity equipment is accessible from 14 years. It can accommodate up to 1 user.

The size of the module is: 2.22 m length, 1.35 m width, 1.22 m. high. The free fall height (FFH) is 0.78 m.

3 sports activities

Dips
Dips x1
Push-ups
Push-ups x1
Pull-ups
Pull-ups x1

3 sports activities

Application Acti'Fun
Application Acti'Fun
Sensations
Sensations
Sharing
Sharing

Specifications

Age range: 14+
Number of users: 1 user
FFH : 0.78 m
Size: 2.22 x 1.35 x 1.22 m

Equipment installation

Number of installers: 2
Installation time: 03:00:00
Concrete volume: 0.52 m3
Surface: 20.50 m2
Total weight: 79.73 kg
Weight of the heaviest element: 14.75 kg

Environmental Indicators

Repairability

Repairability

8.65 /10

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.
Side view
Side view
View from above
View from above

Materials

The 102mm diameter posts

The 102mm diameter posts are made of painted galvanised steel. The grained finish has a slightly undulating surface for increased scratch resistance. The caps are made of... painted aluminium. Read more

The fixing collars

The fixing collars are made of painted aluminium.

The tubes

The tubes are made of stainless steel (diameter 40mm), coated with epoxy paint (RAL 9005).

The fixings

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
