Proludic Australia
ACTI’Street
J5232
Sports Equation

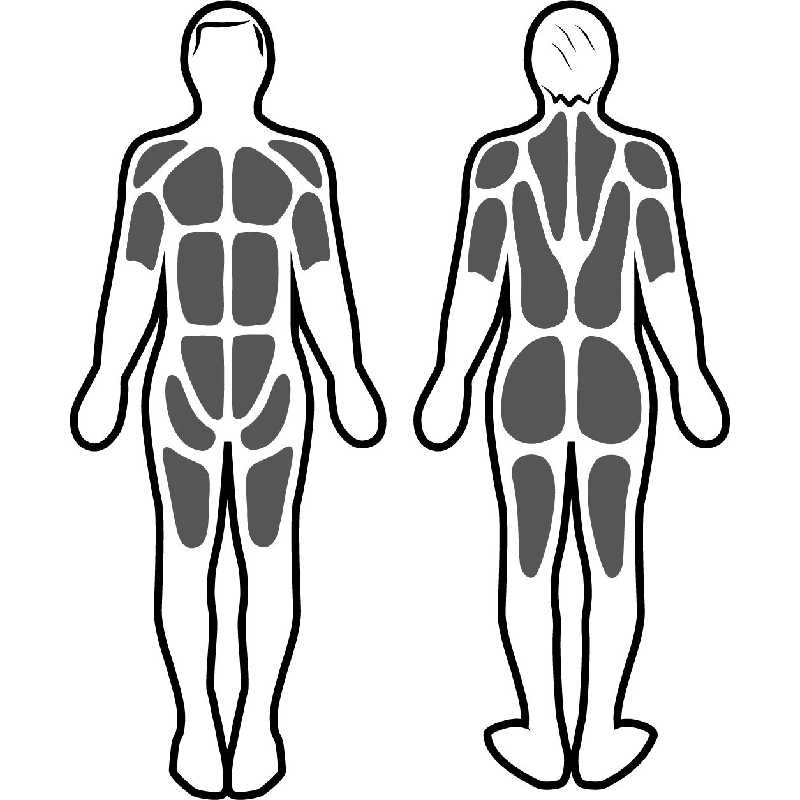

Muscle stimulation
We have created the reference J5232 in our "ACTI’Street" range. This activity equipment is accessible from 14 years. It can accommodate up to 3 users.
The size of the module is: 2.22 m length, 1.80 m width, 1.92 m. high. The free fall height (FFH) is 1.70 m.
| Age range: | 14+ |
| Number of users: | 3 users |
| FFH : | 1.70 m |
| Size: | 2.22 x 1.80 x 1.92 m |
| Number of installers: | 2 |
| Installation time: | 03:00:00 |
| Concrete volume: | 0.70 m3 |
| Surface: | 23.00 m2 |
| Total weight: | 139.53 kg |
| Weight of the heaviest element: | 19.91 kg |
Repairability
8.65 /10
The 102mm diameter posts are made of painted galvanised steel. The grained finish has a slightly undulating surface for increased scratch resistance. The caps are made of... painted aluminium. Read more

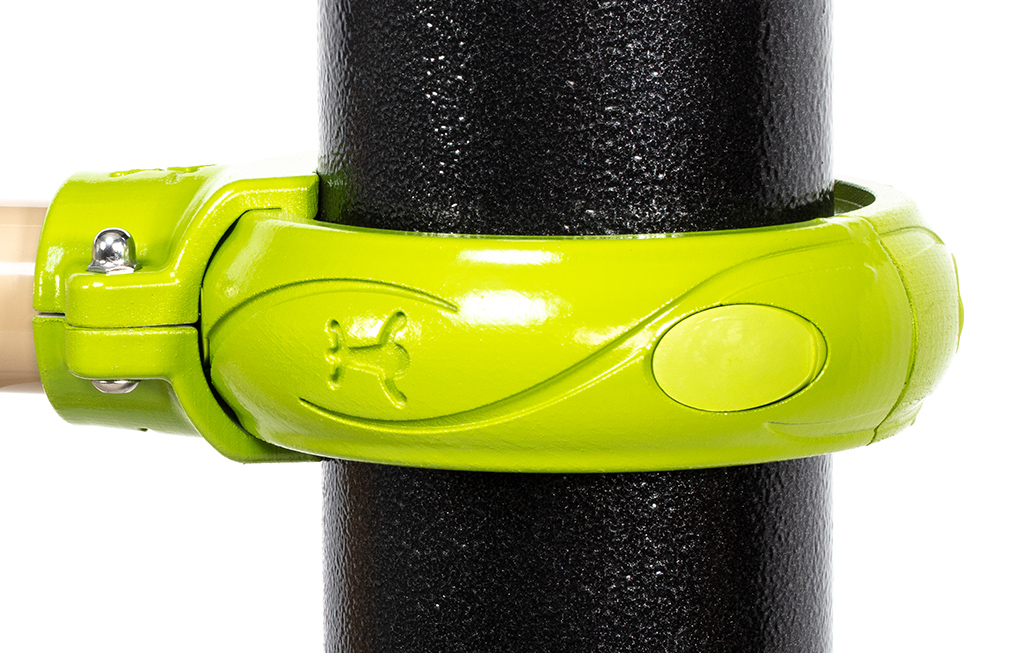

The fixing collars are made of painted aluminium.
The tubes are made of stainless steel (diameter 40mm), coated with epoxy paint (RAL 9005).
The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
