Proludic Australia
Balancing trails
J5408-M
J5408-M
We have created the reference J5408-M in our "Balancing trails" range. This play equipment is accessible from 2 years. It can accommodate up to 11 users.
The size of the module is: 6.52 m length, 3.28 m width, 1.84 m. high. The free fall height (FFH) is 0.60 m.
| Age range: | 2+ |
| Number of users: | 11 users |
| FFH : | 0.60 m |
| Size: | 6.52 x 3.28 x 1.84 m |
| Number of installers: | 2 |
| Installation time: | 07:00:00 |
| Concrete volume: | 1.10 m3 |
| Surface: | 45.00 m2 |
| Total weight: | 222.20 kg |
| Weight of the heaviest element: | 18.43 kg |
Repairability
9.44 /10
The 125mm diameter posts are made of painted galvanised steel. The two-tone grey grained finish has a slightly undulating surface for increased scratch resistance. The caps... are made of injection moulded polyamide. Read more
The platform floors are made from a 18mm thick, non-slip polyethylene material.
The 16mm diameter rope is made of galvanised steel cable covered with polyester.
The net fittings are made of polyamide. The fittings are composed of two distinct parts for ease of maintenance of individual strands.

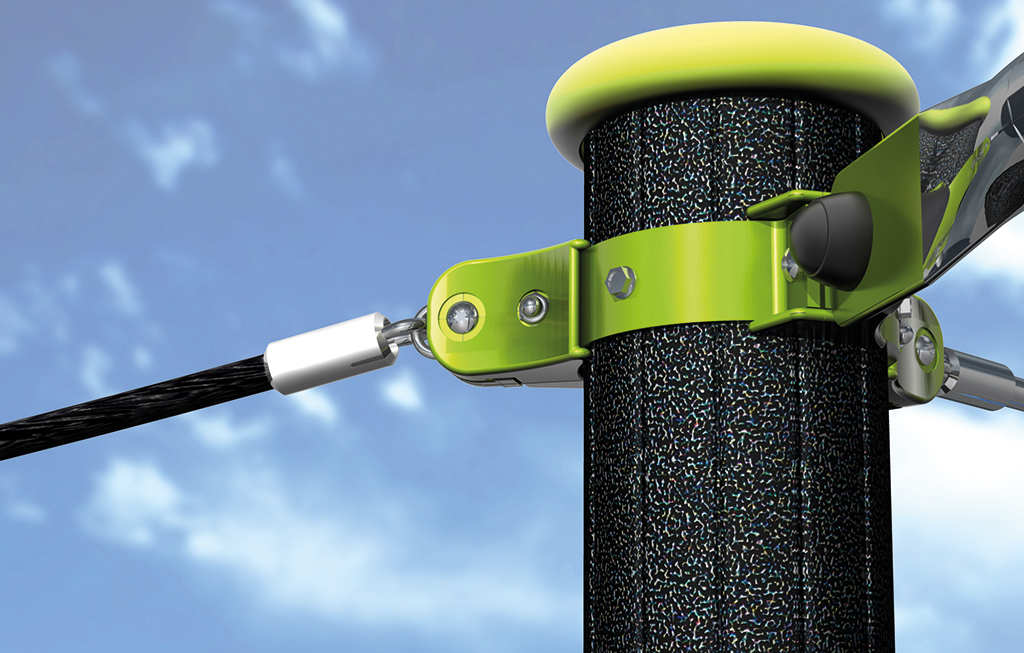

Injected aluminium elements are fixed on the posts with self-drilling screws to provide links between the ropes and the posts.
The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.
The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
