Proludic Australia
Ka’Yop Spiral
J56005®
We have created the reference J56005® in our "Kanopé" range. This play equipment is accessible from 3 years. It can accommodate up to 24 users.
The size of the module is: 5.70 m length, 3.86 m width, 5.20 m. high. The free fall height (FFH) is 2.37 m.
| Age range: | 3+ |
| Number of users: | 24 users |
| FFH : | 2.37 m |
| Size: | 5.70 x 3.86 x 5.20 m |
| Number of installers: | 2 |
| Installation time: | 18:00:00 |
| Concrete volume: | 1.20 m3 |
| Surface: | 48.50 m2 |
| Total weight: | 917.55 kg |
| Weight of the heaviest element: | 172.76 kg |
Repairability
9.48 /10
The 95 x 95mm posts are made of painted galvanised steel, ensuring robustness and durability.
The 125mm diameter posts are made of painted galvanised steel. The caps are made of injection moulded polyamide.
The platform is made from a 12.5mm thick textured and non-slip compact material (HPL).
The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.
The decorative fence panels are made of 3mm thick painted aluminium sheets.
The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.
Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipment both strong and vandal resistant. Read more

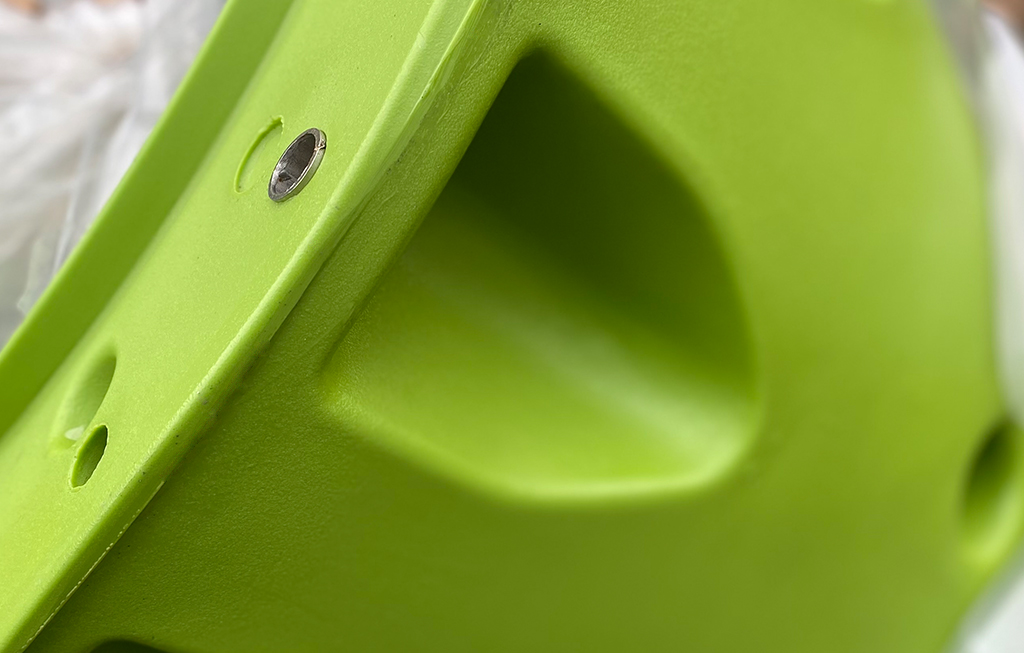

The Kayak slide is made of rotomoulded polyethylene.

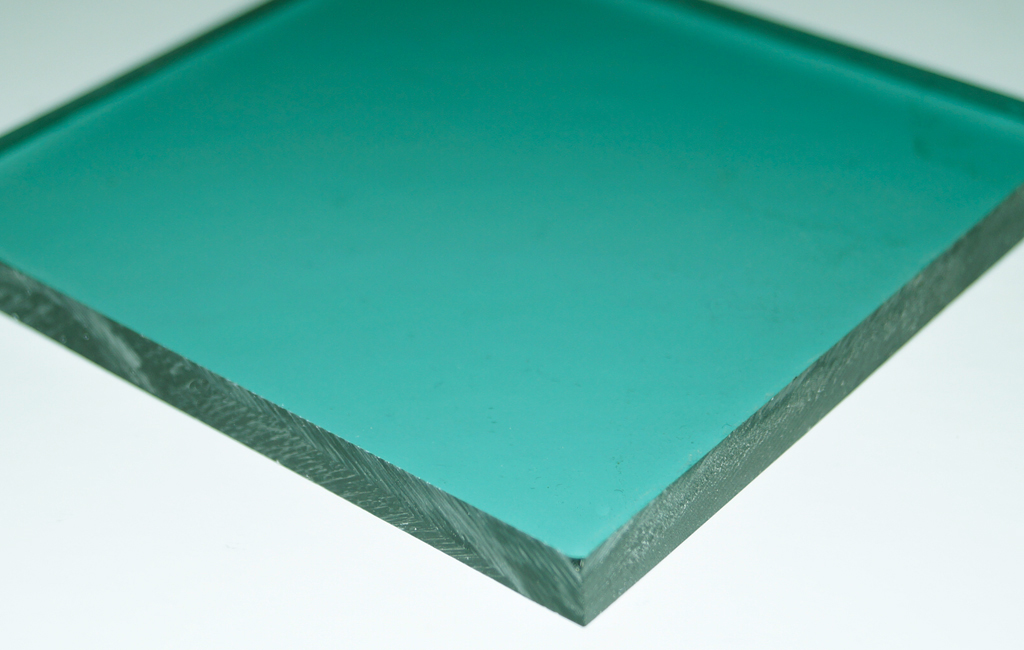

The portholes are made from 8mm thick methacrylate (PMMA).

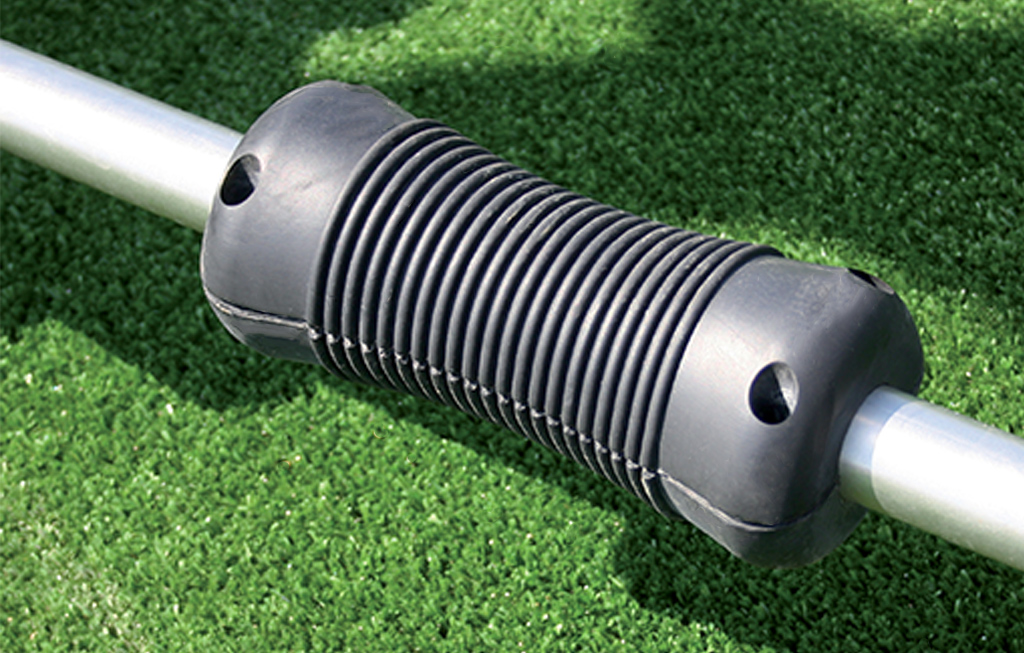

The seats are made with a non-slip rubber overmould.
The 16mm diameter rope is made of galvanised steel cable covered with polyester.
Plastic parts are made of injected polyamide.
The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
