Kanopé - J56009®

We have created the reference J56009® in our "Kanopé" range. This play equipment is accessible from 2 years. It can accommodate up to 80 users.

The size of the module is: 17.89 m length, 5.68 m width, 5.80 m. high. The free fall height (FFH) is 2.97 m.

56 play functions

Role play x3

Role play promotes the child's intellectual and social skills.

Meeting x5

Playing together, children meet new faces, new behaviors, new personalities, and how to interact.

Resting x3

Resting allows the child to recover from their exertions, and also improve their concentration.

Handling x7

Handling is a great activity for developing motor skills and abilities in young children while having fun.

Swinging x3

To create movement, children must be able to coordinate their arms, legs and vision in a coordinated fashion.

Thinking x2

Thinking helps children become more independent and gain self-confidence through increased understanding and self-awareness.

Sound stimulation x2

Fun sound activities bring liveliness to play areas, and are often shared by several children!

Tactile stimulation x8

Each touch-stimulating activity enables children to refine their manual dexterity skills, and the coordination of their gestures.

Visual stimulation x12

It awakens curiosity and memorising, stimulating concentration to better assimilate details, or to succeed in the association of colors.

Climbing x6

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height and space.

Traversing x1

Successfully traversing promotes self-confidence and motivates the child to undertake more complex movements.

Sliding x2

Sliding is always exciting and fun. On a classic slide or a sliding pole, on your stomach, on your back, as you please.

Hiding x1

Feel the excitement of being hidden somewhere, and then the pleasure of finally being found.

Balancing x1

Balancing involves learning to manage empty space in activities at height, when hanging or on narrow surfaces.

Specifications

Age range:	2+
Number of users:	80 users
FFH :	2.97 m
Size:	17.89 x 5.68 x 5.80 m

Equipment installation

Number of installers:	3
Installation time:	30:00:00
Concrete volume:	2.80 m3
Surface:	99.00 m2
Total weight:	2803.70 kg
Weight of the heaviest element:	41.73 kg

Environmental Indicators

Repairability

9.48 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The 125mm diameter posts are made of painted galvanised steel. The caps are made of injection moulded polyamide.

The 95 x 95mm posts are made of painted galvanised steel, ensuring robustness and durability.

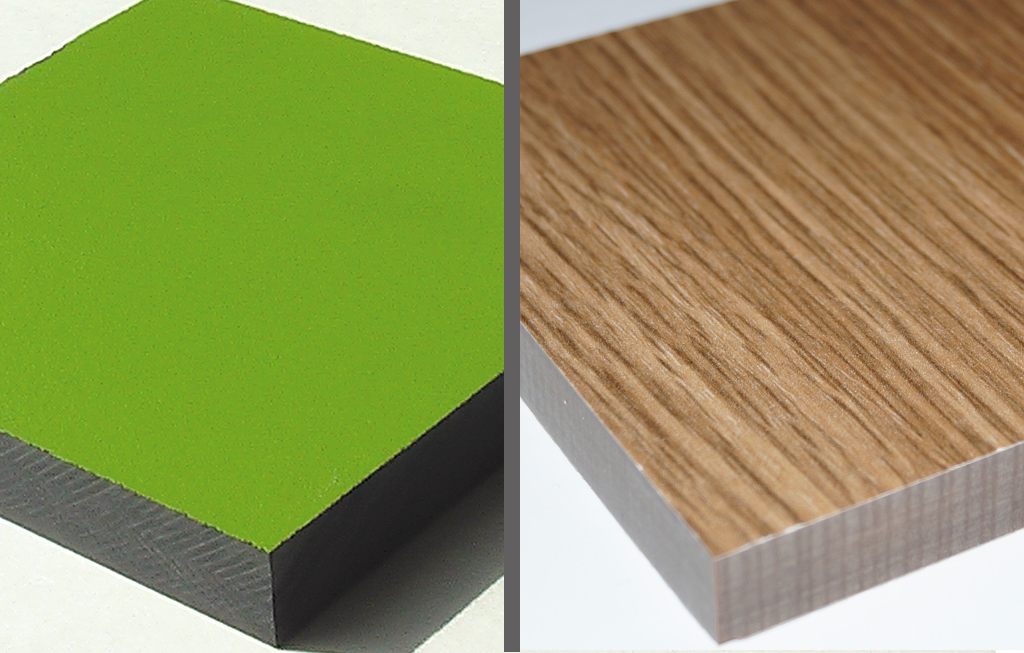

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The slatted fences are made of composite wood (slats of 70 x 30 mm), which is a chip and split resistant waterproof material with UV protection.

The platforms are made from a 12.5mm thick textured and non-slip compact material (HPL).

The decorative fence panels are made of 3mm thick painted aluminium sheets.

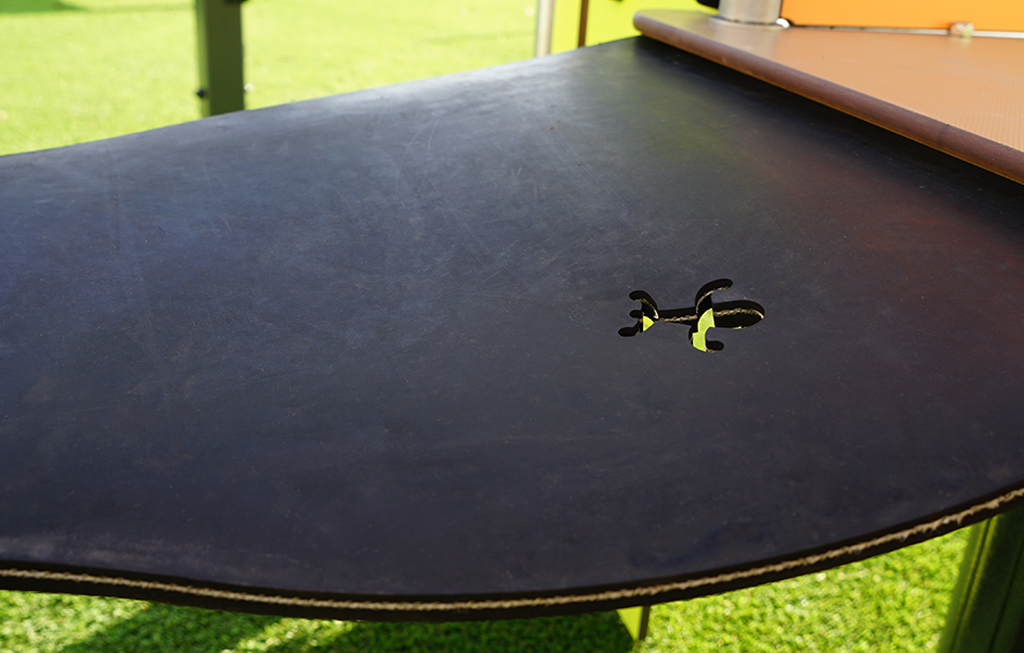

The soft ramp is made of a woven strip with rubber surface.

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

The panels are made of stainless steel mesh netting, Ø 6mm.

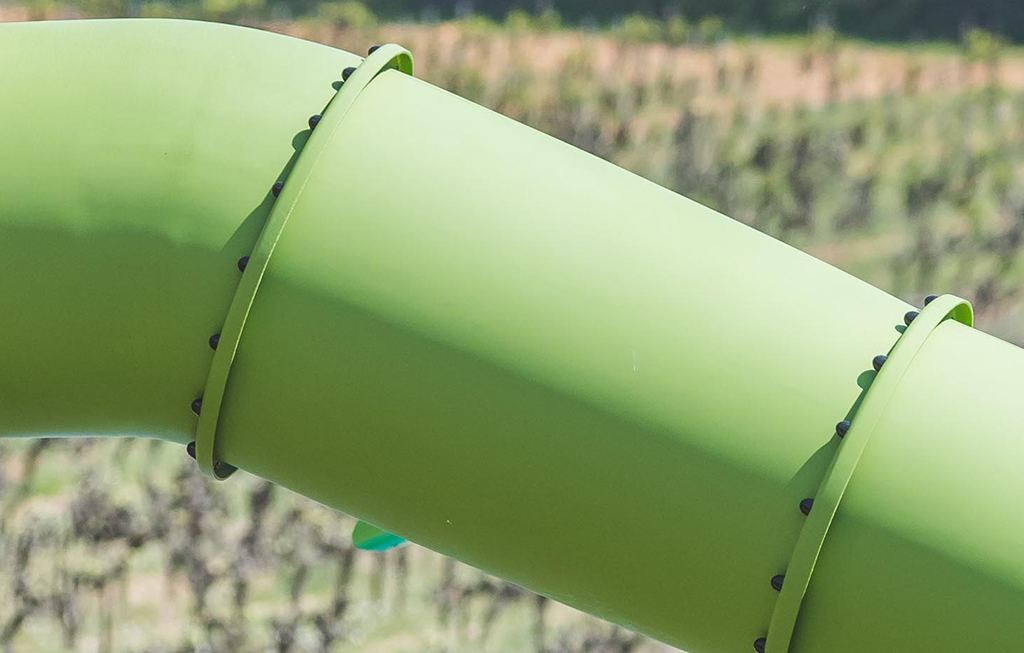

The slide is made of rotomoulded polyethylene.

The sliding surface is made of 2mm thick stainless steel, which is shaped, bent and rolled from one piece.

The seats are made with a non-slip rubber overmould.

The chains are made of stainless steel.

The portholes are made from 8mm thick methacrylate (PMMA).

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.

Everything you need to know about the materials used by Proludic
