Kanopé - Double Tower - J56101

We have created the reference J56101 in our "Kanopé" range. This play equipment is accessible from 5 years. It can accommodate up to 55 users.

The size of the module is: 17.60 m length, 8.59 m width, 8.65 m. high. The free fall height (FFH) is 2.16 m.

58 play functions

Climbing x1

Climbing develops the child's motor and psychomotor skills as they balance and deliberate to progress in their movement.

Role play x2

Role play promotes the child's intellectual and social skills.

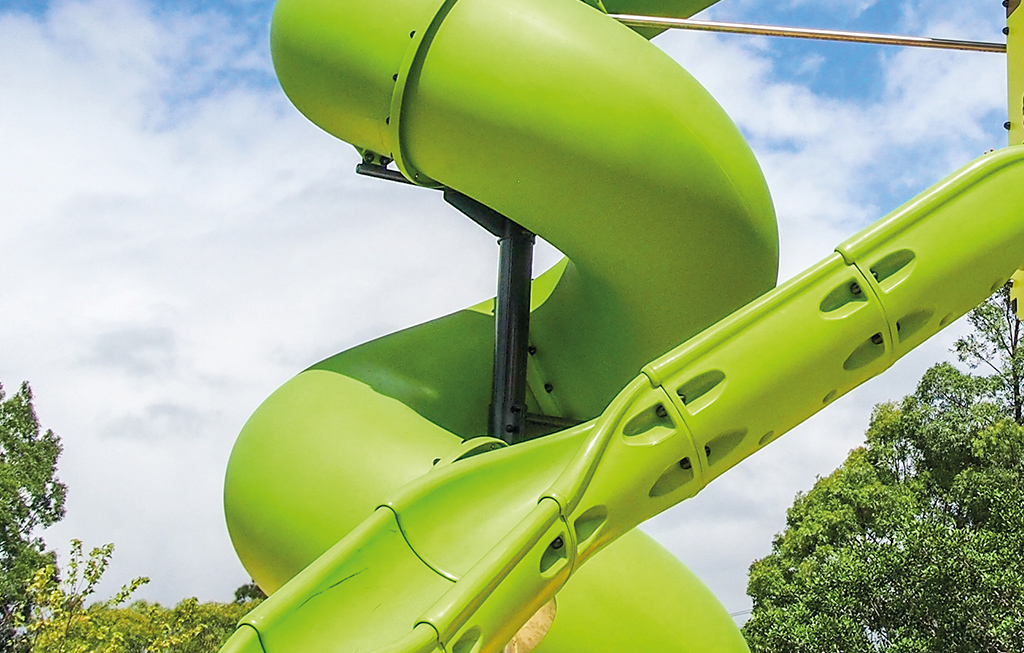

Sliding x5

Sliding is always exciting and fun. On a classic slide or a sliding pole, on your stomach, on your back, as you please.

Meeting x2

Playing together, children meet new faces, new behaviors, new personalities, and how to interact.

Resting x10

Resting allows the child to recover from their exertions, and also improve their concentration.

Crawling x1

Crawling is a fun exercise that allows young children to become aware of their body in a small space.

Hiding x11

Feel the excitement of being hidden somewhere, and then the pleasure of finally being found.

Balancing x2

Balancing involves learning to manage empty space in activities at height, when hanging or on narrow surfaces.

Sheltering x12

Finding a small refuge to shelter in ensures children have a space of their own.

Sound stimulation x1

Fun sound activities bring liveliness to play areas, and are often shared by several children!

Tactile stimulation x1

Each touch-stimulating activity enables children to refine their manual dexterity skills, and the coordination of their gestures.

Visual stimulation x5

It awakens curiosity and memorising, stimulating concentration to better assimilate details, or to succeed in the association of colors.

Climbing x2

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height and space.

Traversing x3

Successfully traversing promotes self-confidence and motivates the child to undertake more complex movements.

Specifications

Age range:	5+
Number of users:	55 users
FFH :	2.16 m
Size:	17.60 x 8.59 x 8.65 m

Equipment installation

Number of installers:	3
Installation time:	55:00:00
Concrete volume:	2.50 m3
Surface:	93.50 m2
Total weight:	5320.55 kg
Weight of the heaviest element:	78.33 kg

Environmental Indicators

Repairability

9.48 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

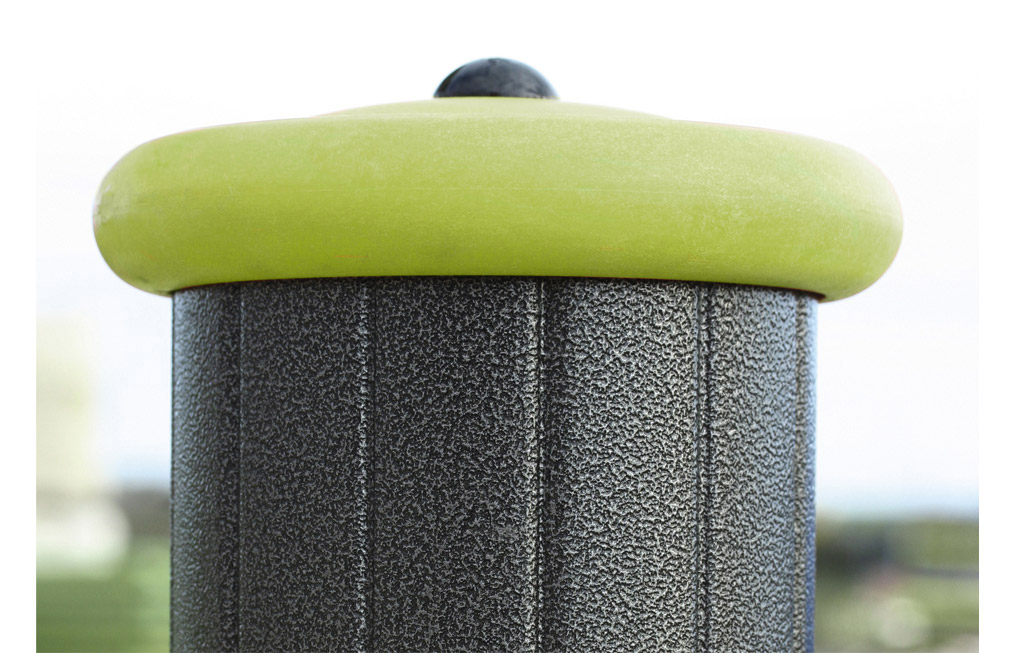

The 125mm diameter posts are made of painted galvanised steel. The two-tone grey grained finish has a slightly undulating surface for increased scratch resistance. The caps... are made of injection moulded polyamide. Read more

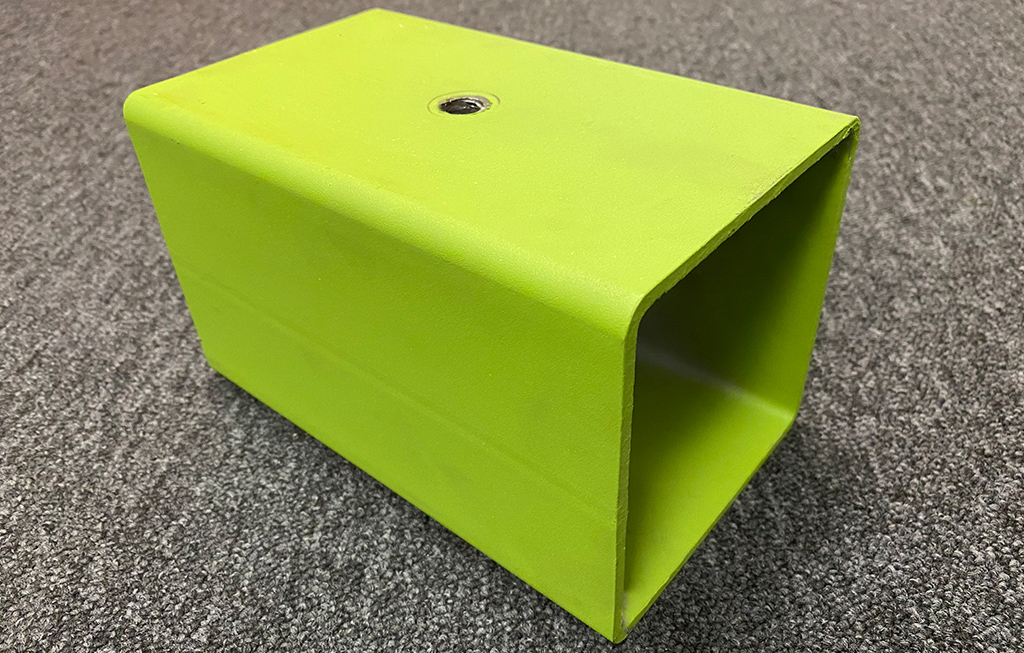

The 120 x 120mm posts are made of painted galvanised steel, ensuring robustness and durability.

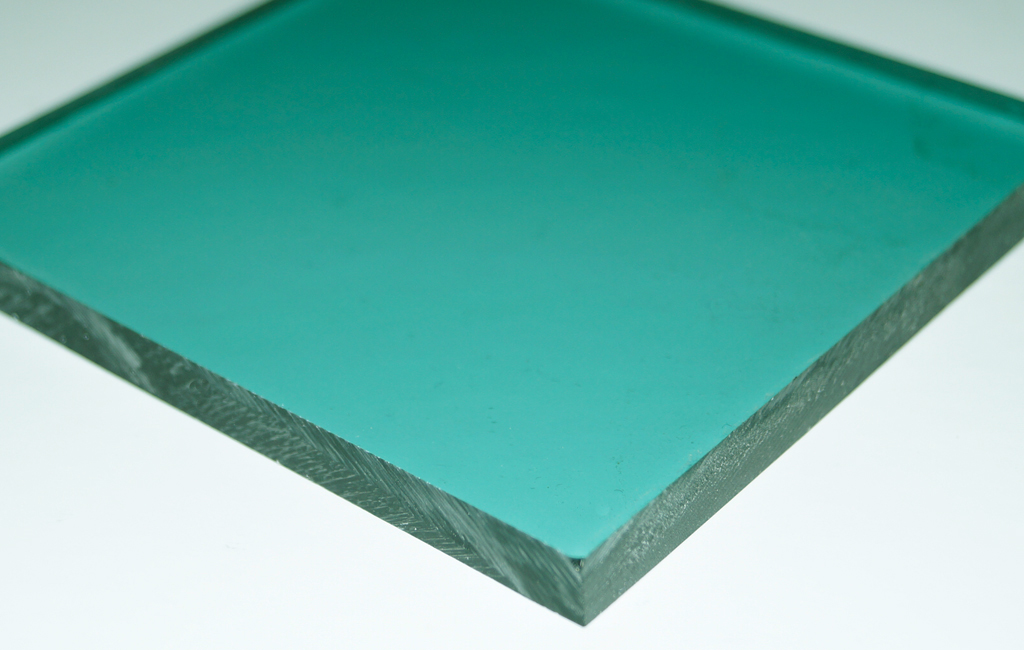

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The slatted fences are made of composite wood (slats of 70 x 30 mm), which is a chip and split resistant waterproof material with UV protection.

The platforms are made from a 12.5mm thick textured and non-slip compact material (HPL).

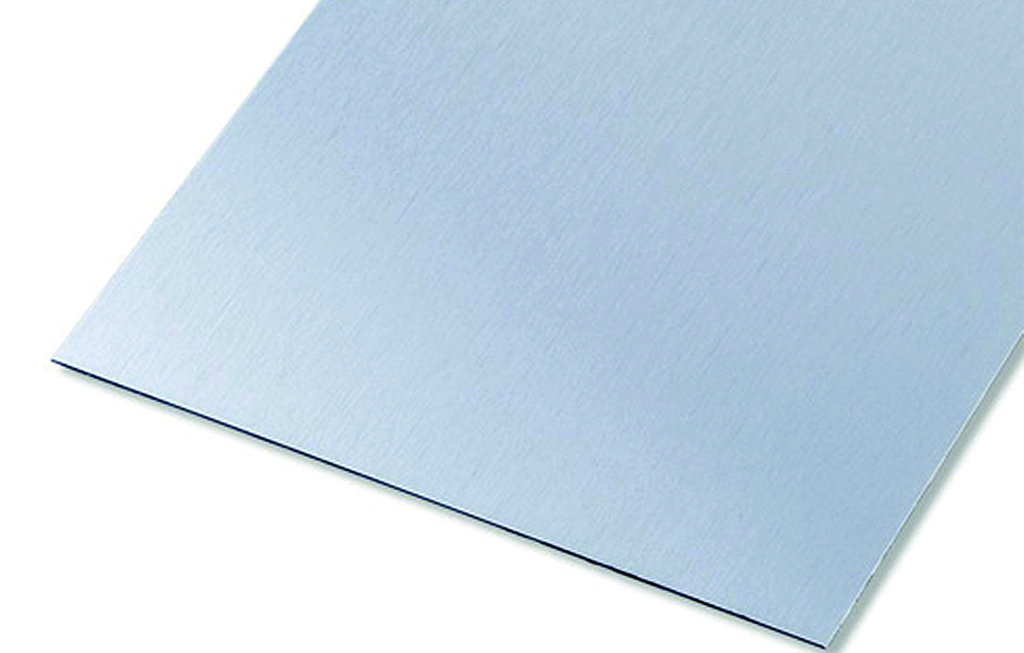

The wall panels are made of 3mm perforated aluminium sheet coated with a polyester epoxy lacquer.

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

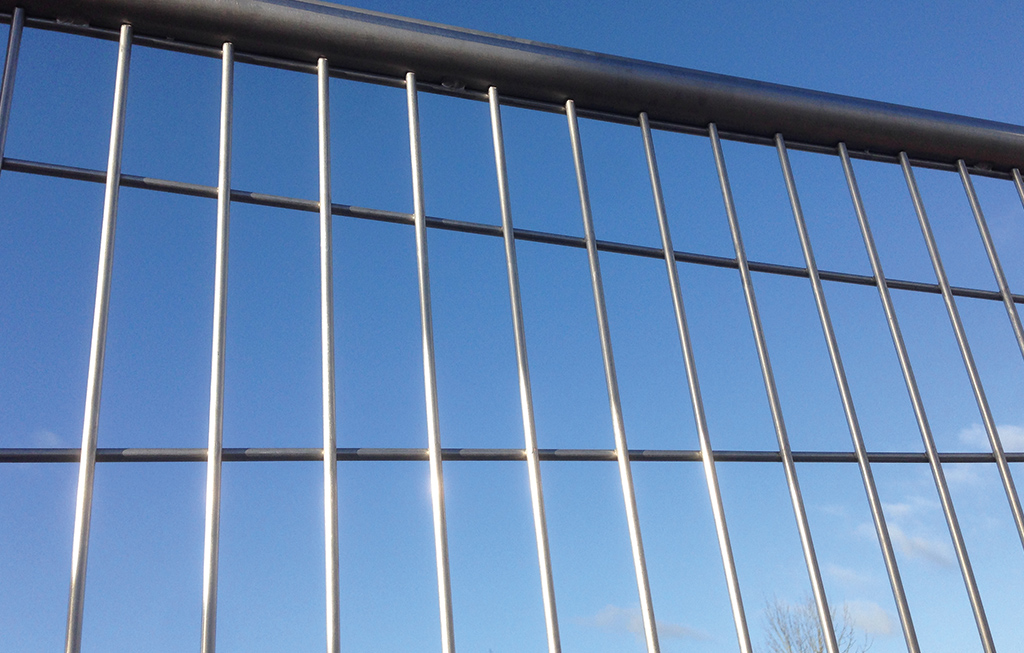

The panels are made of stainless steel mesh netting, Ø 6mm.

The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.
