Challenge Ninja trail
J5923®
Sports Equation

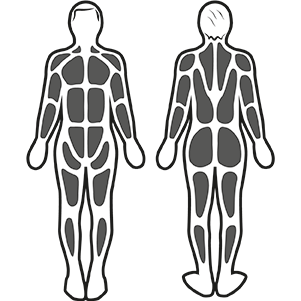

Muscle stimulation
We have created the reference J5923® in our "ACTI’Ninja" range. This play equipment is accessible from 1.40 m. It can accommodate up to 25 users.
The size of the module is: 15.25 m length, 6.72 m width, 3.01 m. high. The free fall height (FFH) is 2.46 m.
| Minimum size: | > 1.40 m |
| Number of users: | 25 users |
| FFH : | 2.46 m |
| Size: | 15.25 x 6.72 x 3.01 m |
| Number of installers: | 2 |
| Installation time: | 15:00:00 |
| Concrete volume: | 1.20 m3 |
| Surface: | 106.50 m2 |
| Total weight: | 1045.63 kg |
| Weight of the heaviest element: | 107.02 kg |
Repairability
8.65 /10
The 125mm diameter posts are made of painted galvanised steel. The grained finish has a slightly undulating surface for increased scratch resistance.
The caps are made of rotary moulded polyethylene (A) or injection moulded polyamide (B).
The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.
Injection moulded polyamide fixings connect the posts with the platforms and the various play feautures.
Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipment both strong and vandal resistant. Read more

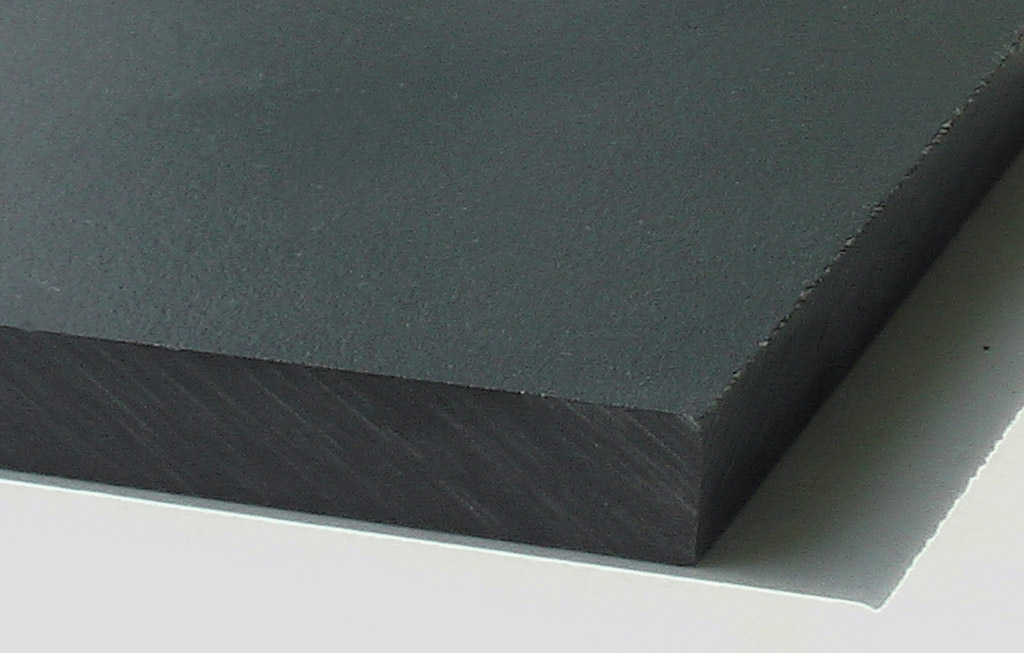

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

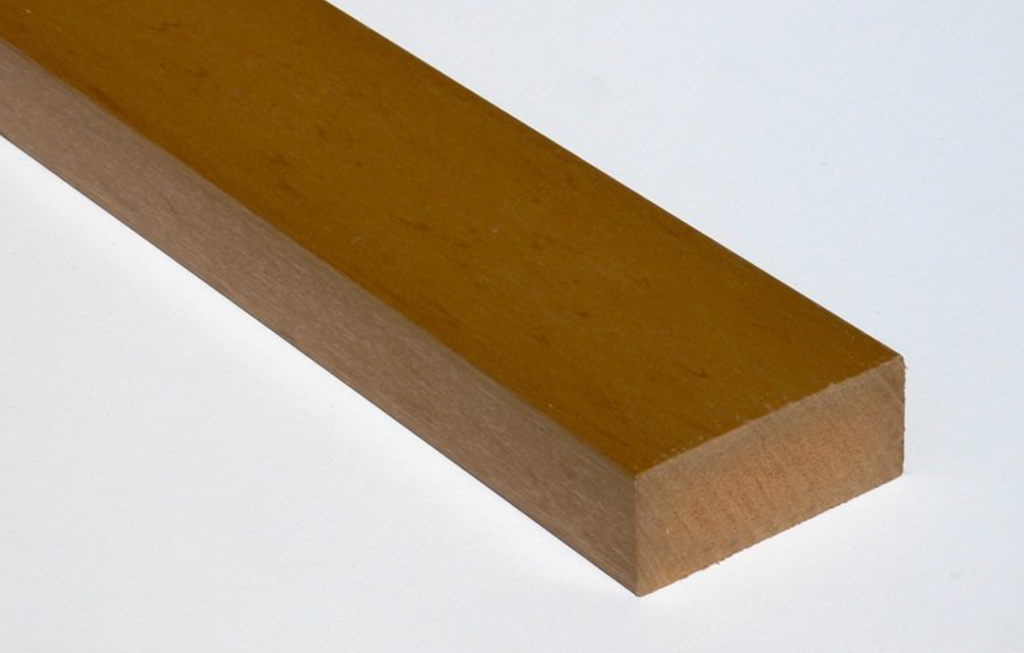

The footrests and fingerrests are made of composite wood (slats of 70 x 30 mm), which is a chip and split resistant waterproof material with UV protection.
The steps are made from a 18mm thick, non-slip polyethylene material.
The platforms are made from a 12.5mm thick textured and non-slip compact material (HPL).
The rolls are made of polyurethane foam.
The steps are made with a non-slip rubber overmould.
The footrests are made of shock-absorbing rubber with non-slip surfaces.
The chains are made of stainless steel.
The rings are made of 7mm diameter galvanised steel covered with rubber.
The strap is made of 3 ropes linked together with aluminium pliers. Each rope, of 16mm diameter, is made up of galvanized steel cables covered in polypropylene.

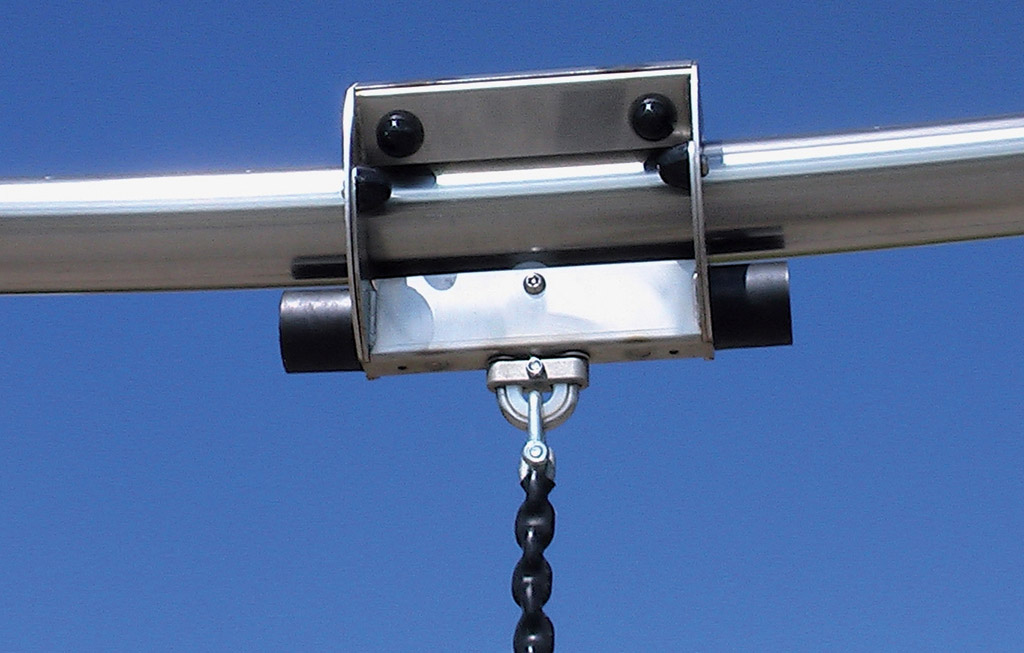

The one-piece rail is made of stainless steel, Ø 76.1mm, 3.6mm thick. The trolley is made of stainless steel ensuring its durability.

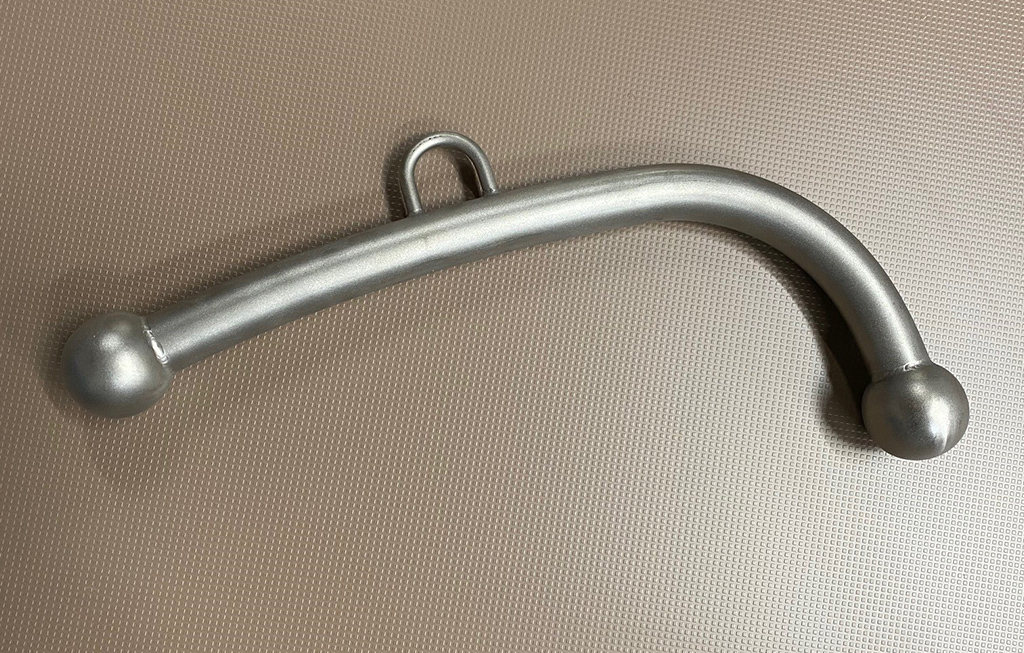

The handle is made of of stainless steel.
The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
