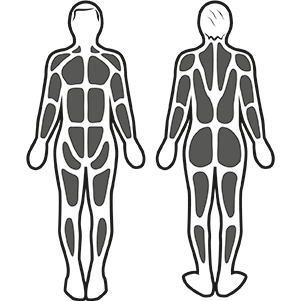

Muscle stimulation

ACTI’Ninja - Slalom Ninja trail - J5925®

We have created the reference J5925® in our "ACTI’Ninja" range. This play equipment is accessible from 6 years. It can accommodate up to 36 users.

The size of the module is: 5.63 m length, 2.53 m width, 3.01 m. high. The free fall height (FFH) is 2.32 m.

19 sports activities

Balancing x7

Getting across x9

Hanging x3

4 sports activities

Sensations

Progressive design

Sharing

Challenge

Specifications

Age range:	6+
Number of users:	36 users
FFH :	2.32 m
Size:	5.63 x 2.53 x 3.01 m

Equipment installation

Number of installers:	2
Installation time:	09:00:00
Concrete volume:	0.65 m3
Surface:	50.00 m2
Total weight:	625.22 kg
Weight of the heaviest element:	107.02 kg

Environmental Indicators

Repairability

8.65 /10

Downloads

Technical fact sheet

Materials sheet

JPEG Image

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The 125mm diameter posts are made of painted galvanised steel. The grained finish has a slightly undulating surface for increased scratch resistance. The caps are made of... rotary moulded polyethylene. Read more

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

Injection moulded polyamide fixings connect the posts with the platforms and the various play feautures.

Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipment both strong and vandal resistant. Read more

The steps are made from a 18mm thick, non-slip polyethylene material.

The platforms are made from a 12.5mm thick textured and non-slip compact material (HPL).

The rolls are made of polyurethane foam.

The steps are made with a non-slip rubber overmould.

The footrests are made of shock-absorbing rubber with non-slip surfaces.

The chains are made of stainless steel.

The rings are made of 7mm diameter galvanised steel covered with rubber.

The strap is made of 3 ropes linked together with aluminium pliers. Each rope, of 16mm diameter, is made up of galvanized steel cables covered in polypropylene.
