Springers - Solo Spring - J868

We have created the reference J868 in our "Springers" range. This play equipment is accessible from 2 years. It can accommodate up to 1 user.

The size of the module is: 0.90 m length, 0.40 m width, 0.70 m. high. The free fall height (FFH) is 0.60 m.

4 play functions

Resting x1

Resting allows the child to recover from their exertions, and also improve their concentration.

Role play x1

Role play promotes the child's intellectual and social skills.

Balancing x1

Balancing involves learning to manage empty space in activities at height, when hanging or on narrow surfaces.

Swinging and rocking x1

It allows children to leave their stable position and experiment with uncoordinated movements.

Specifications

Age range:	2+
Number of users:	1 user
FFH :	0.60 m
Size:	0.90 x 0.40 x 0.70 m

Equipment installation

Number of installers:	1
Installation time:	01:00:00
Concrete volume:	0.10 m3
Surface:	8.00 m2
Total weight:	32.67 kg
Weight of the heaviest element:	22.74 kg

Environmental Indicators

Repairability

9.06 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

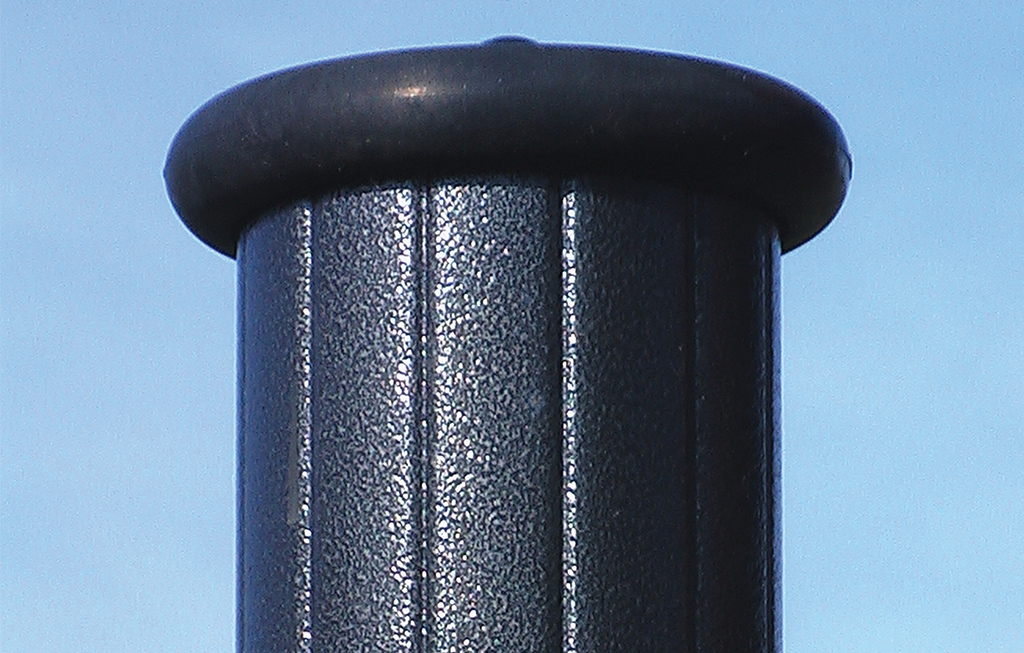

The 125mm diameter post is made of painted galvanised steel. The two-tone grey grained finish has a slightly undulating surface for increased scratch resistance. The cap is... made of injection moulded polyamide. Read more

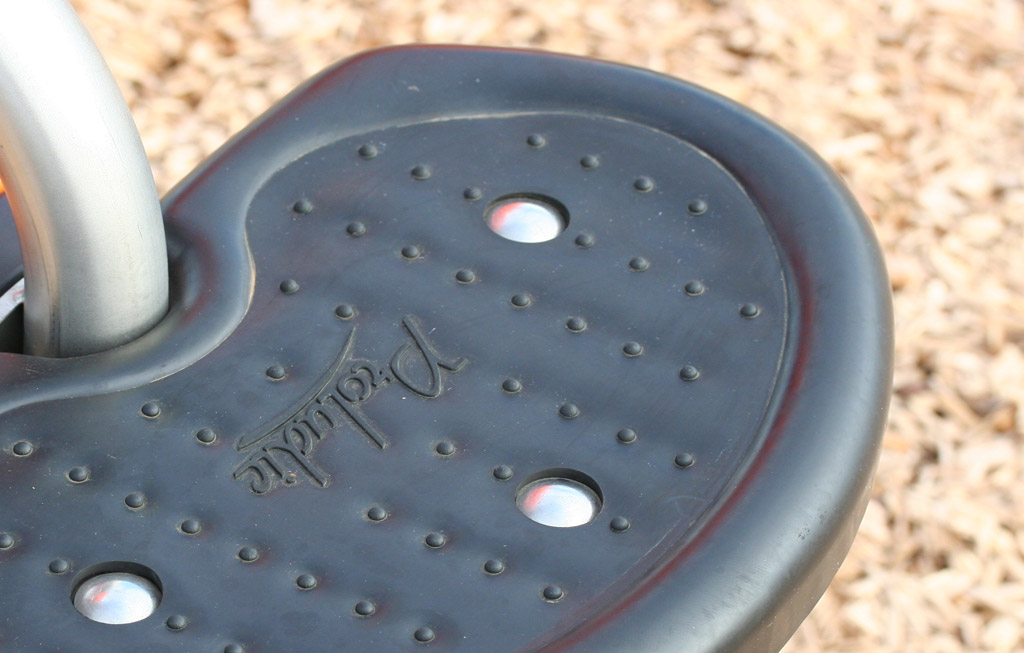

The seat is made of shock-absorbing rubber with non-slip surfaces.

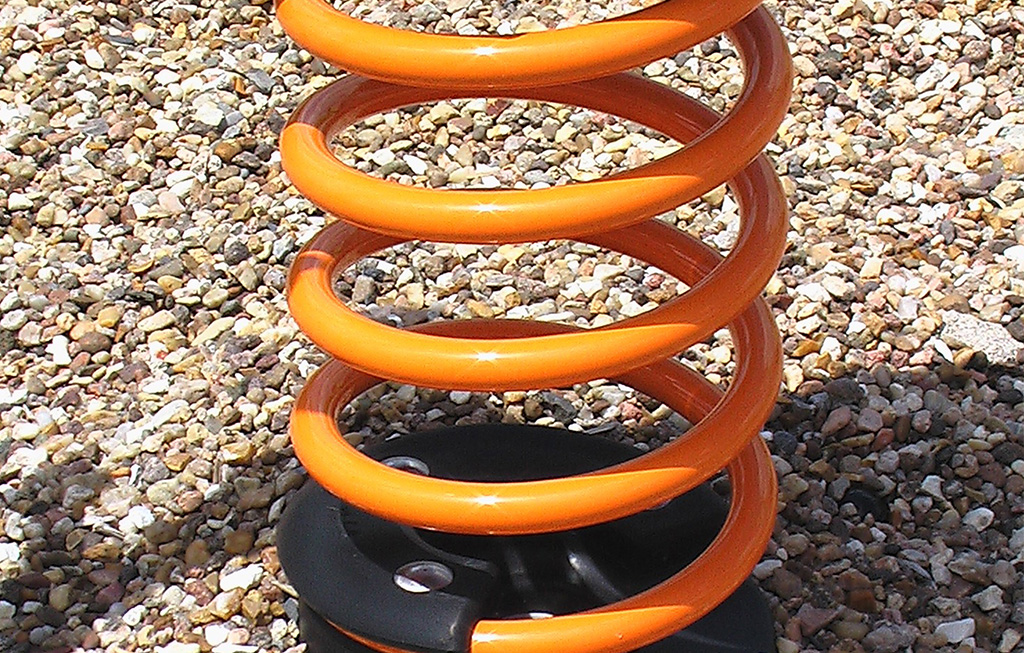

The spring is made from Grade 35SCD6 steel, shot blasted, stress relieved, zinc coated and finished with two coats of epoxy polyester powder. The polyamide... attachment ensures longevity and an exceptional safety for the system. Read more
