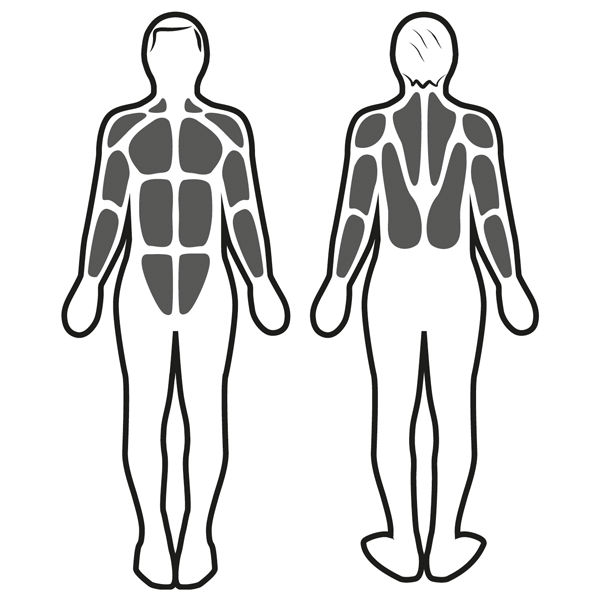

Muscle stimulation

Muscle stimulation

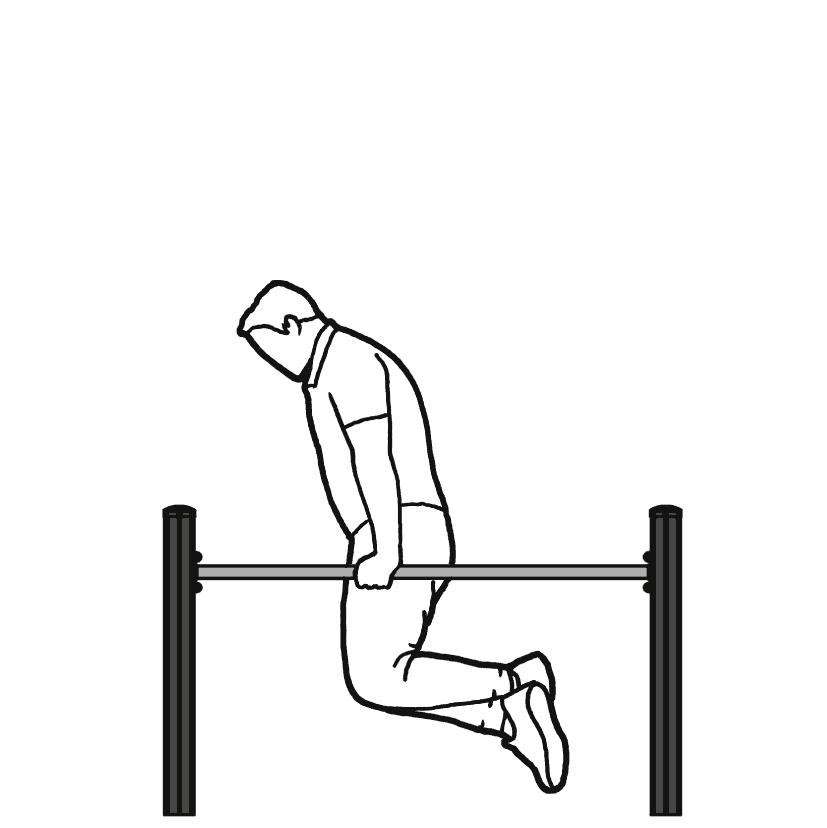

Movement

Movement

ACTI’Ninja - Junior Parallel Bars - JPS15-J-M

We have created the reference JPS15-J-M in our "ACTI’Ninja" range. This activity equipment is accessible from 8 years. It can accommodate up to 1 user.

The size of the module is: 1.69 m length, 0.75 m width, 0.80 m. high. The free fall height (FFH) is 0.60 m.

Other finishes available

JPS15-S-M

JPS15-S-M

JPS15-S

JPS15-S

JPS15-J

JPS15-J

3 sports activities

Dips
Dips x1
Pull-ups
Pull-ups x1
Push-ups
Push-ups x1

3 sports activities

Sharing
Sharing
Diversity
Diversity
Challenge
Challenge

Specifications

Age range: 8+
Number of users: 1 user
FFH : 0.60 m
Size: 1.69 x 0.75 x 0.80 m

Equipment installation

Number of installers: 1
Installation time: 01:00:00
Concrete volume: 0.10 m3
Surface: 16.00 m2
Total weight: 44.55 kg
Weight of the heaviest element: 9.44 kg

Environmental Indicators

Repairability

Repairability

8.65 /10

Downloads

Technical fact sheet
Materials sheet*
JPEG Image
2D DWG
3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.
Side view
Side view
View from above
View from above
Side view
View from above

You might like...

J5910®

J5910®

J5903®

J5903®

J5901®

J5901®

JPS11-S-M

JPS11-S-M

Materials

The 95 x 95mm posts

The 95 x 95mm posts are made of painted galvanised steel, ensuring robustness and durability. The caps are made of injection moulded polyamide.

The tubes

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

The fixings

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.

Everything you need to know about the materials used by Proludic
